Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
PH10
LED Encapsulation :
Kinglight
LED Module :
320 × 160 mm
Cabinet :
1280 × 800 mm
Thickness :
145 mm
Power Supply :
CE standard
Control Method :
Synchronization
Package :
Plywood case
Description



Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance


Quick Detail:

1. SMD3535 LED;
2. 1/2 scan constant current;
3. About 6,500 nits;
4. Kinglight LED encapsulation;

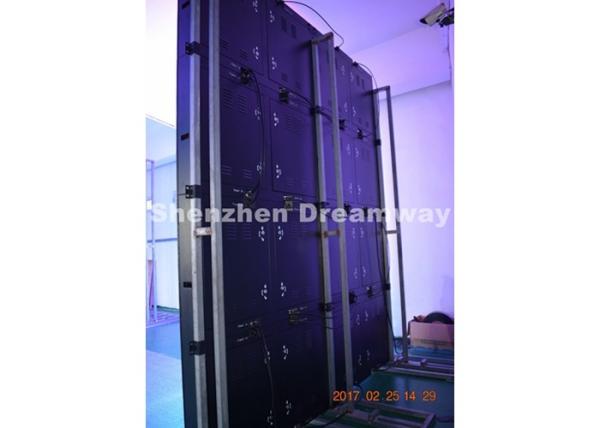

5. Iron waterproof cabinet with back door;
6. Novastar controller.


Detail Description:

This type is with Kinglight LED encapsulation, about 6,500 nits, visible under strong sunshine;
Cabinet is 1280 by 800 mm, 4 by 5 pcs LED modules, about 38 kg/pc;
Power supply is Chuanglian brand, with CE certified, 110V and 240V interchangeable.


Application:

This LED display screen would be installed on building for commercial application.


Specifications:

Type

P10

LED Type

SMD3535

LED Composition

1R 1G 1B

Screen Size

W 2.56 × H 3.2 m

Resolution

W 256 × H 320 pixels

Module Size

W 320 × H 160 mm

Cabinet Size

W 1280 × H 800 × D 145 mm

Cabinet Weight

38 kg/pc

Cabinet Material

Iron waterproof cabinet with back door

LED Module Quantity

W 8 × H 20 = 160 pcs

Cabinet Quantity

W 2 × H 4 = 8 pcs

Best Viewing Distance

10 ~ 100 m

Driving Mode

1/2 scan constant current

Luminance

6,500 nits

View angle

120 degrees

Power and Signal Connector

Linko

Power Supply

110V and 240V interchageable

Brand

Chuanglian

Control Card

Novastar

Package

Plywood Case


Commercial 1/2 Scan square Outdoor Advertising LED Display Rear Maintenance

High Brightness P10 mm Outdoor LED Display, Waterproof Outdoor LED Board, Outdoor LED Display Screen 10 mm
