Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description

7500 nits Luminance PH16 Outdoor LED Signs with 2R1G1B Epistar LED

Quick Detail:

1. 2R1G1B LED composition;

2. All Epistar LED package;

3. R9 GB9×12 chip;

4. Static scanning drive method;

5. Not less than 7500 nits per square meter;

6. Front service LED box with hydraulic pod.

Detail Description:

Hot in USA market, installed for church message showing, road sign playing, etc;

Appropriate design of circuit;

Good quality power supply, no need to worry of burning out.

Application:

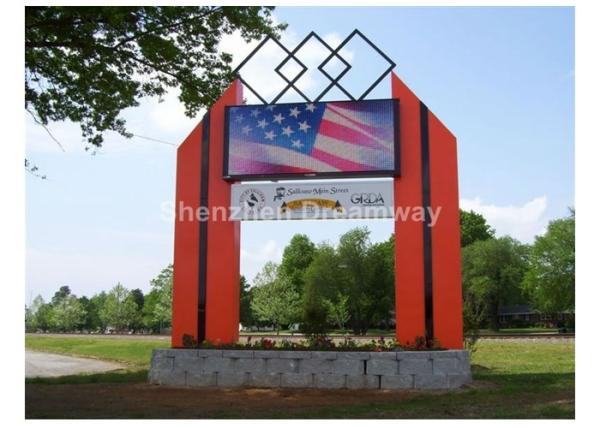

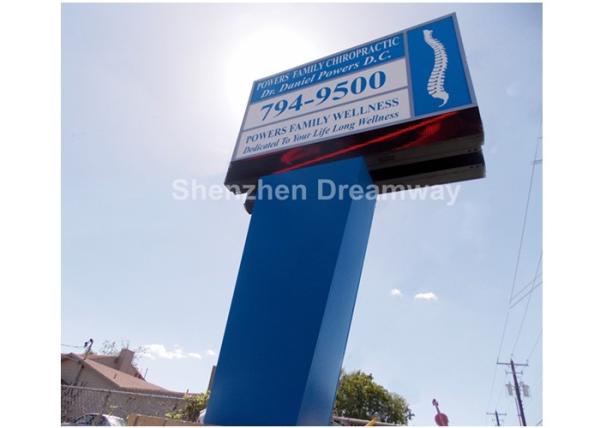

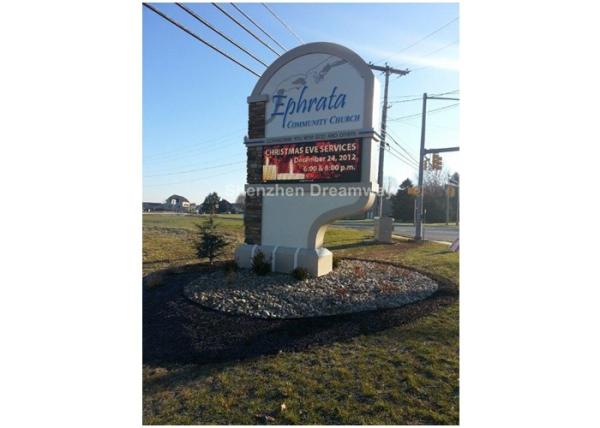

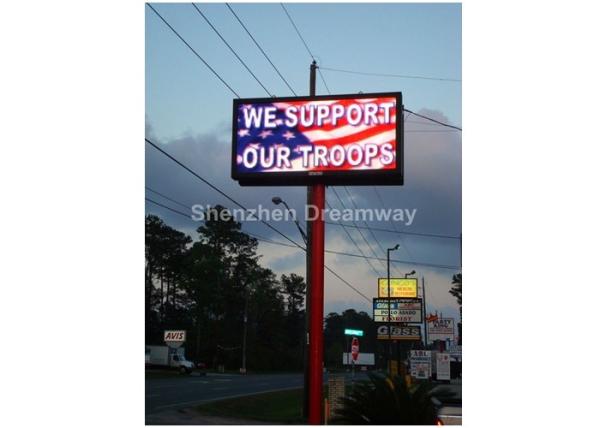

It is installed on wall, outside church, shop for advertising.

Specifications:

Pixel Pitch

16mm

LED Composition

2R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

LED Module Pixel

W 16 × H 8 = 128 dots

LED Module Size

W 256 × H 128 mm

Service Way

Front

Cabinet Color

Black

Cabinet Material

Steel waterproof, with frame

Driving Mode

Static scan

Luminance

More than 7500 CD/sq.m

Refresh Rate

≥200Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Brand

Meanwell

Operation Software

LED Editor_V9

Operation System

Win2000 / XP / Vista

Advertising Epistar Outdoor LED Display Signs 2R1G1B Pixel 16mm , 7500 nits Luminance

Full Color Outdoor LED Signs, PH16 Outdoor LED Signs, Outdoor LED Signs Solution
