High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description

High Brightness PH16 2R1G1B Outdoor LED Billboard with MBI5024 Drive IC

Quick Detail:

1. 16 by 16 dots per module;

2. 3,906 dots for each square meter;

3. Synchronization operation;

4. Nova controllers used;

5. More than 800Hz refresh rate;

6. Mimumin view distance is 16 meters.

Detail Description:

Air conditioned space needs to be made;

High brightness reached to 8000 nits/sq.m;

Long controlling distance with about 10km could be also achieved.

Application:

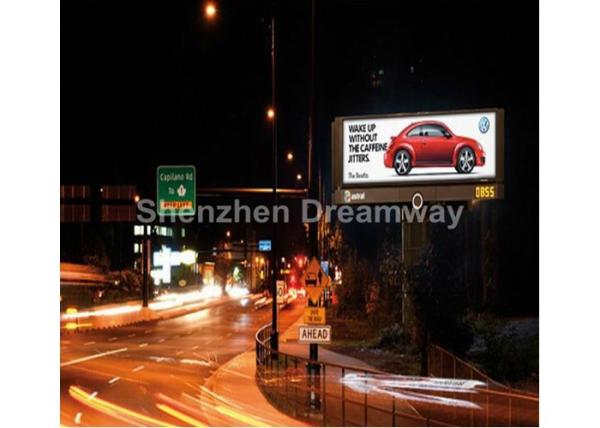

It is used for street commercial ads.

Specifications:

Type

PH16

LED Composition

2R1G1B

LED Type

DIP546

LED Chip

OPTO / SILAN

LED Module Pixel

W 16 × H 16

LED Module Size

W 256 × H 256 mm

Cabinet Dimension

W 1024 × H 768 mm

Cabinet Color

Black

Cabinet Material

Steel

Drive Method

Static scan

Luminance

More than 7500 nits/sq.m

Refresh Rate

More than 800Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Source

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Operation Software

Nova Studio

Operation System

Win2000 / XP / Vista

High Brightness PH16 2R1G1B Outdoor LED Billboard advertising with MBI5024 Drive IC

Outdoor LED Billboard Factory Price, Outdoor LED Billboard Manufacturer, High Luminance Outdoor LED Billboard
