Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Pixel Pitch :
16 mm
LED Type :
DIP546
Module Pixel :
16 × 16
Module Size :
256 × 256 mm
Drive Method :
Static scan
LED Composition :
1R1G1B
Drive IC :
MBI5024
Cabinet Size :
1024 × 768 mm
Description

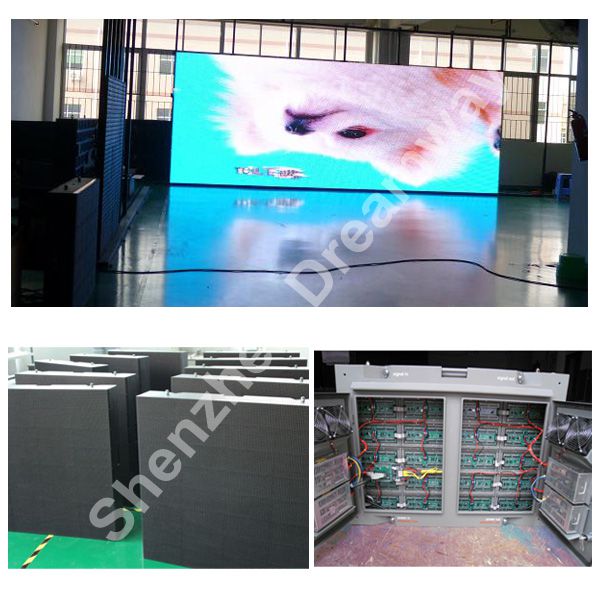

Static Scan P 16 Outdoor Advertising LED Display with Brightness 7500 CD


Quick Detail:

1. MBI5024 LED driver;
2. 16×16 dots per LED module;
3. 256 by 256 mm module size;
4. 1024 by 768 mm cabinet dimension;
5. Epistar LED chip;
6. 1R1G1B LED composition.


Detail Description:

7500 nits per square meter luminance makes sure that it is visible even under strong sunshine;
CE standard power supply is the guarantee of display operation well;
Plywood box is strong, hard to be damaged.


Application:

It is installed on buiding, shopping center, park, school, etc, for video advertising.


Specifications:

Type

P16

LED Composition

1R1G1B

LED Type

DIP546

Pixel

3,906 dots/sq.m

LED Module Pixel

W 16 × H 16

LED Module Size

W 256 × H 256 mm

Normal Cabinet Dimension

W 1024 × H 768 mm

Cabinet Color

Black

Driving IC

MBI5024

Driving Method

Static scan

Luminance

≥7500 nits/sq.m

Refresh Rate

≥800Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Source

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Operation Software

NovaStudio

Control Method

Synchronization control
