Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Plywood case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description



Epistar 1R1G1B Stadium P16 LED Display Screen With Static Scan JXI5020 IC


Quick Detail:

1. All is Epistar LED;
2. JXI5020 LED drive IC;
3. More than 7500 nits per square meter;
4. 1R1G1B composition;
5. 16 by 16 dots per LED module;
6. 256 by 256 mm module size.


Detail Description:

Cabinet dimension could be 1024×768 mm or 1024×1024 mm;
Meanwell UL standard power supply with 5V60A;
Multifunctional card for automatic brightness control.


Application:

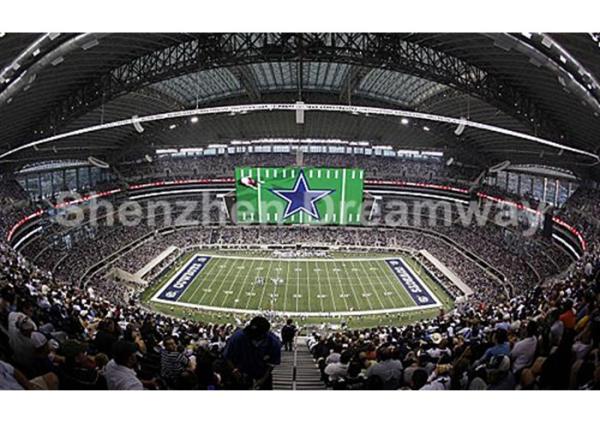

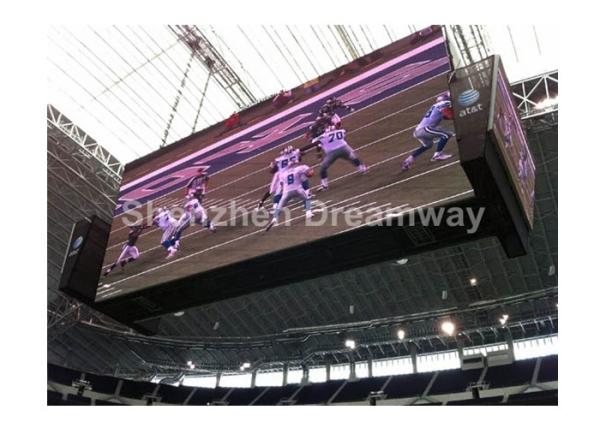

It is used for soccer or football stadium for live broadcasting matches report.


Specifications:

Pixel Pitch

16mm

Pixel Composition

1R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

LED Module Pixel

W 16 × H 16 = 256 dots

LED Module Size

W 256 × H 256 mm

Cabinet Material

Steel waterproof cabinet

Driving Method

Static scan

Brightness

≥7500 nits/sq.m

Refresh Rate

≥1200 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronization control

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI


Large Stadium LED Display Board, Stadium LED Display for Outdoor Advertising, Stadium LED Display with Good Price
