RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P16
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Flight case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description

1R1G1B PH16 Perimeter LED Display with Epistar MBI5024 LED Driver IC

Quick Detail:

1. 1R1G1B;

2. Epistar LED;

3. R9 GB9×12 chip size;

4. More than 7,500 nits/sq.m;

5. Static scan;

6. MBI5024 driving IC.

Detail Description:

Video processor is needed in such project;

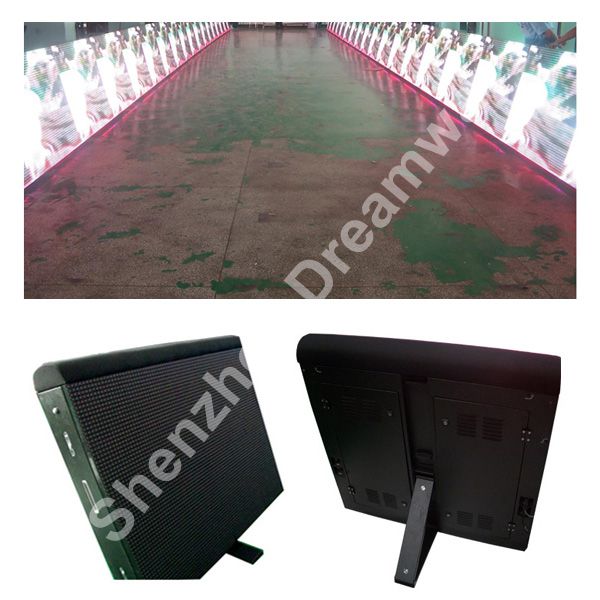

Cabinet size is 1024×1024 mm;

Soft mask prevents football from kicking it and damge.

Application:

It is used around football stadium for playing ads.

Specifications:

Model

PH16

LED Composition

1R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

Module Pixel

W 16 × H 16

Module Size

W 256 × H 256 mm

Cabinet Material

Steel cabinet, with support standing

Driving Mode

Static scan

Luminance

≥7500 nits/sq.m

Refresh Rate

1200~4000 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronous control with PC on

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI


RGB PH 16 football stadium Perimeter LED Display Epistar MBI5024 , S-VIDEO HDMI

Perimeter LED Display Board, Sports Perimeter LED Display, Perimeter LED Display Screen
