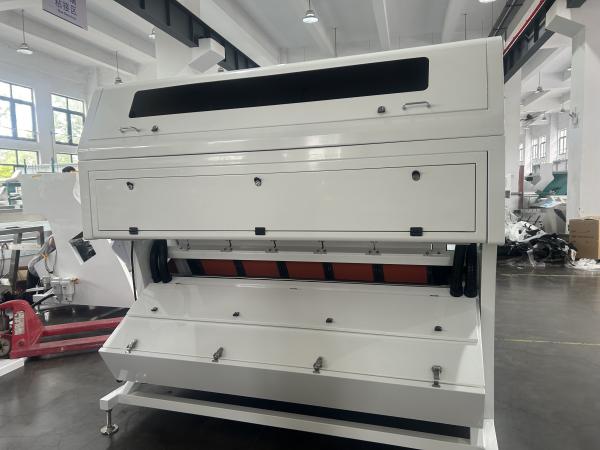

RGB 5400 Corn Seeds Color Sorter Machine 320 Channel
RGB 5400 Corn Seeds Color Sorter Machine 320 Channel
RGB 5400 Corn Seeds Color Sorter Machine 320 Channel
RGB 5400 Corn Seeds Color Sorter Machine 320 Channel
Specifications
Brand Name :
DREAM PLUS
Model Number :
6SXM-320JM5
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 Work Days
Packaging Details :
Wood Packaging
Model :
6SXM-320JM5
Primary:Secondary Sorting :
3:2
Channel :
320
Sorting Accuracy :
99%
Voltage(V) :
AC220V/50Hz
Camera Resolution :
RGB 5400
Power(Kw) :
≤3.0kw
Dimension(L*W*H mm) :
2330×1630×2030
Warranty :
2 year
Weight(Kg) :
1360
Description

Color sorters used in food and processing industry. They are essential for maximum quality selection of bulk raw materials. For example, color sorters have place in finish of preparing process at flour mills. Grain passes through the machine once and grain is sorted to 99,9% purity. Besides grain, color sorters used for sorting of other products like nuts, leguminous crops, oilseeds, grass seeds, dried fruits and berries.

Raw materials could be sesame, wheat, oats, buckwheat, sunflower, tea, beans etc. In any agricultural culture, the use of high-quality seed material is of particular importance. Seed cleaning is very important stage. Color sorter use let to to supply the market with premium products complying with current quality standards.

Technical Parameter

Model 6SXM-320JM5
Output(T/h) 1.0~2.0
Carryover Rate(Bad:Good) >20:1
Sorting Accuracy(%) ≥99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤3.0
Pressure(Mpa) 0.4-0.6
Weight(Kg) 1360(±5%)
Diamension(mm) 2330*1630*2030


Sorting Material

RGB 5400 Corn Seeds Color Sorter Machine 320 Channel

Description of work:

Raw product go into the receiving hopper 7. Vibrating feeder 1 feeds material to feeding tray evenly. Product through feeding tray goes to inspection area for color cameras 3 and 10. The Product illuminated by powerful LED backlight 4. And the product is scanned from both sides by high-speed cameras for a defect according to the criteria set by the operator through the control panel 2. Good finished product continues to move into chamber for clean product 6. If the product is identified as dirt, then it move to the channel for waste fraction 5 by air ejector 11.
