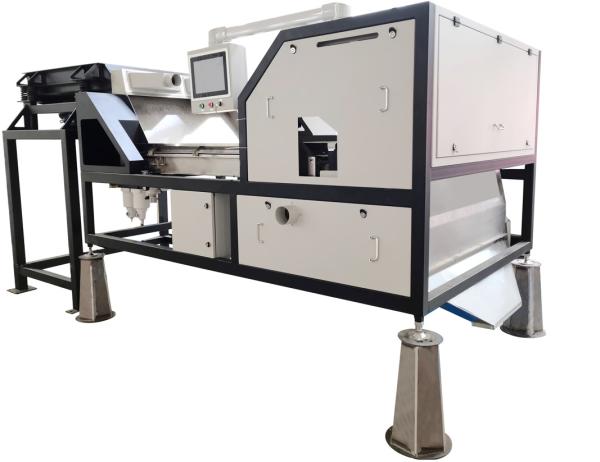

Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine 10t/h
Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine 10t/h
Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine 10t/h
Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine 10t/h
Specifications
Brand Name :
DREAM PLUS
Model Number :
DMLDSK1200
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 Work Days
Packaging Details :
Wood Packaging
Name :
Belt Color Sorter Machine
Belt Width(m) :
1200
Capacity(t/h) :
5-10
Voltage(V/Hz :
220/380v,50hz
Camera Configuration :
4 front+4 rear
Warranty :
1 year
Description

Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine

Mineral Stones Quartz Sorting Machine With 54 Million Pixels



Product Description
1. Sorting range is from 3cm to 20 meshes of mineral granula.
2. Our machine is adaptable to the hash working environment of heavy dust, high pollution and corrosin, the application scope is widely and the service life is longer.
3. The crawler type flexible belt ensures the higher sorting accuracy and the lower carryover ratio.
4. The unique modular design and self maintenance function (automatic dust removal and spary) ensure the long service life.

Features:

1. High-speed & -resolution Ratio CCD Camera: high speed line scan with 54 million pixels CCD sensor.
2. Nikon CCD Camera: high quality imaging, high resolusion ratio, excellent color reduction without distortion.
3. Pro-face Touch Screen: High feedback speed, sensitivity, reliability and easy operation.
4. High Frequency Solenoid Valve: special for sorting, high frequency, low power consumption, high sorting accuracy.
5. High Luminance LED: low power consumption, long service life, high reliability.
6. System: special for sorting any defect and foreign material.

Minerals,Ores,Quartz Sand,Hematite Color Sorting Machine 10t/h

Technical Parameter

Model DMLDSK1200
Output(T/h) 5-10
Belt Width(mm) 1200
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V/38050HZ
Power Supply(Kw) ≤5.5
Pressure(Mpa) 0.4-0.6
Weight(Kg) 1800(±5%)
Diamension(mm) 4392*1928*2501

What we can sort:

1, Non-metallic minerals: potassium feldspar, quartz, talc, phosphate, calcite, dolomite, andalusite, fluorite, vermiculite, mica, bentonite,

2, kaolin, barite, feldspar, quartz, calcium carbonate, pebbles, cryolite, garnet, limestone, manganese ore and so on.

3, Black ore: monocrystalline silicon, polycrystalline silicon.

Nonferrous ore: copper, antimony, mercury, lead, zinc, tin, nickel, magnesium, cobalt, aluminum, bismuth and silica.

4, Precious metals: gold, silver, zirconium, tungsten, molybdenum, tantalum and niobium.

5, Glass: broken glass,Colored glass.
