High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
Specifications
Brand Name :
DREAM PLUS
Model Number :
6SXM-96JM1
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
500 Set/Sets per Month
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Package
Type :
Grain Color Sorter
Warrenty :
One Year
Capacity :
0.4-0.8 t/h
Accuracy :
99.99%
Power :
2.0 Kw
Weight :
500 kg
Dimension :
1045*1630*1550 mm
Core Component :
Camera, PLC, Ejector
Brand :
DREAMPLUS
Key Selling Points :
High-accuracy, grain color sorter
Description

High Output 1 chute 96 channels Grain Color Sorter for Beans Nuts Seeds

Optical CCD Cameras Grain Color Sorter Introduction

Dreamplus grain color sorter, as an intelligent machine, can detect and remove defect seeds and foreign materials like glass,stones,sticks. Its working based on the color,shape and size difference.Dreamplus color sorter always provides customers with intelligent, professional and comprehensive sorting solutions, by introducing innovative online detection technology to the rice processing industry, Dreamplus will lead the industry into a new and smart area.

Product Parameters

Model Capacity(T/h) Power(Kw) Voltage Weight(Kgs) Dimension(mm)
6SXM-64J1 0.9-1.5 1.5 AC220V/50Hz 350 955*1630*1550
6SXM-80J1 1.0-2.0 1.65 AC220V/50Hz 500 1045*1630*1550
6SXM-96JM1 1.1-2.2 1.7 AC220V/50Hz 500 1045*1630*1550
6SXM-160JM2 1.5-3.2 1.8 AC220V/50Hz 600 1330*1630*1550
6SXM-192JM3 2.0-5.0 2.0 AC220V/50Hz 900 1530*1620*2040
6SXM-256JM4 3.0-6.0 2.6 AC220V/50Hz 1200 1800*1620*2040
6SXM-320JM5 4.0-7.0 3.0 AC220V/50Hz 1350 2190*1620*2040
6SXM-384JM6 5.0-8.0 3.6 AC220V/50Hz 1500 2528*1620*2040
6SXM-448JM7 6.0-10.0 4.0 AC220V/50Hz 1750 2765*1620*2040
6SXM-512JM8 7.0-11.0 4.6 AC220V/50Hz 1800 3152*1620*2040
6SXM-640JM10 8.0-15.0 5.5 AC220V/50Hz 2200 3910*1620*2040

Why Dream Plus?

Easy to Use Intuitive Touch Screen

High Volume Processing

Higher Yields

Reduced Labor Requirements

Increased Throughput

Consistent High-Quality

Fewer Complaints from Customers

Increased Peace of Mind

Better Utilization of Resources

Grain Color Sorter Sorting Material

High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels

Grain Color Sorter Typical Features:

1. High reliability
The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.

2. Advanced camera image acquisition system
Unique 5400 pixel, 3 CCD, true color colorful CCD chips, high-speed high resolution linear CCD camera, which can distinguish the heterochromatic area smallest up to 0.025mm2, very accurate.

3. Intelligent image processing algorithm
Special intelligent algorithms, world sole rapid and big data communication, implement special treatment for tiny spots, yellowish material, etc. To improve sorting accuracy.

4. World Famous Ejectors
Using world famous ejectors, 1000times per second high-frequency, 10 billion times long working life, low air consumption to guarantee the big capacity, excellent rejection output.

5. LED light source
The LED light source, long life, more energy-efficient.

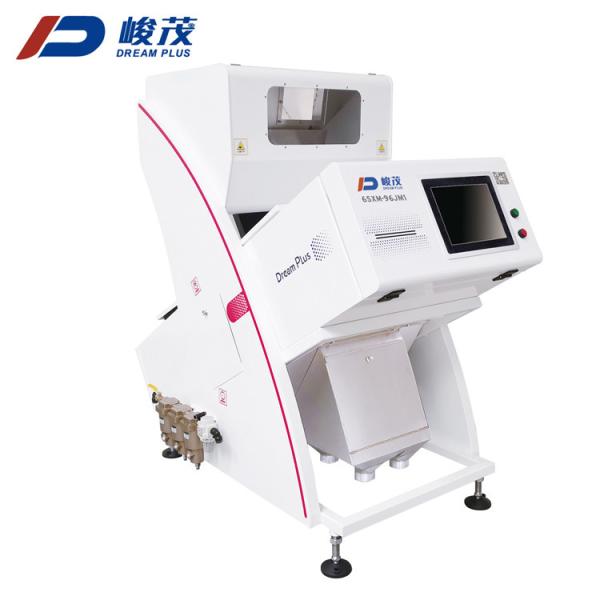

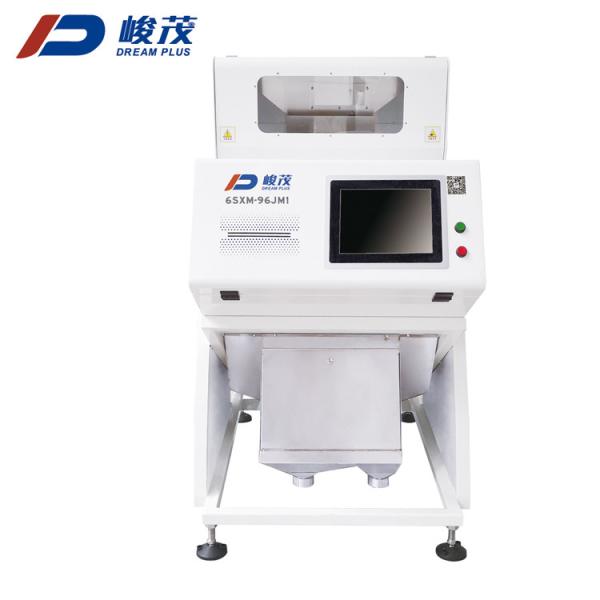

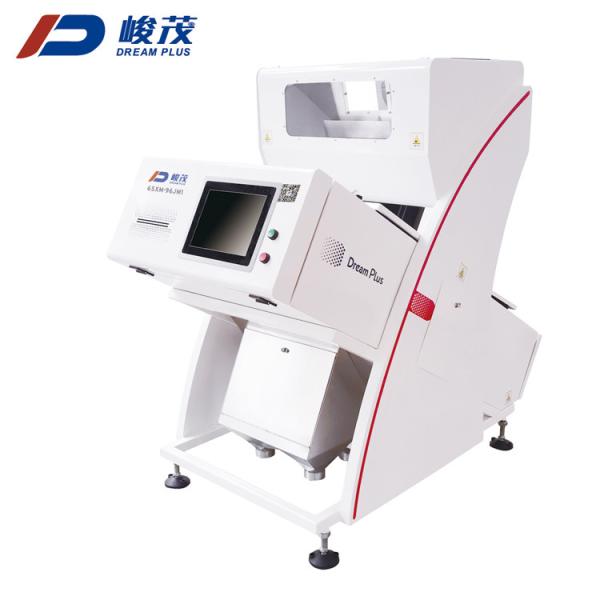

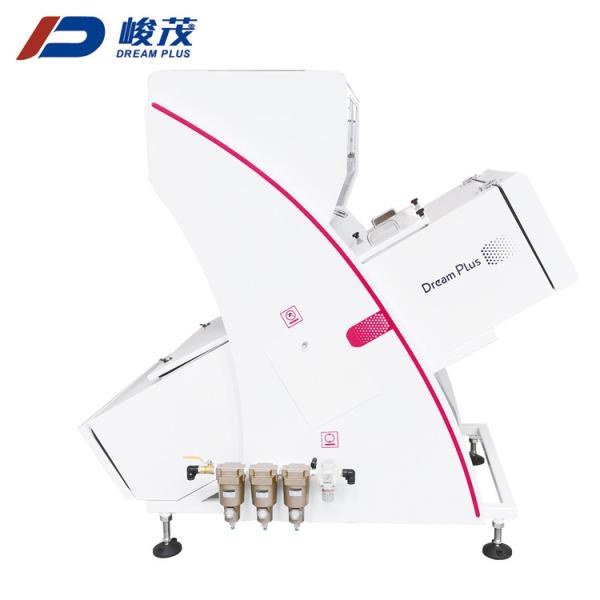

Grain Color Sorter Photo Show

High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 ChannelsHigh Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 ChannelsHigh Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 ChannelsHigh Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels

Dream Plus Company Show

High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels

High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels High Output Grain Color Sorter For Beans Nuts Seeds 1 Chute 96 Channels
