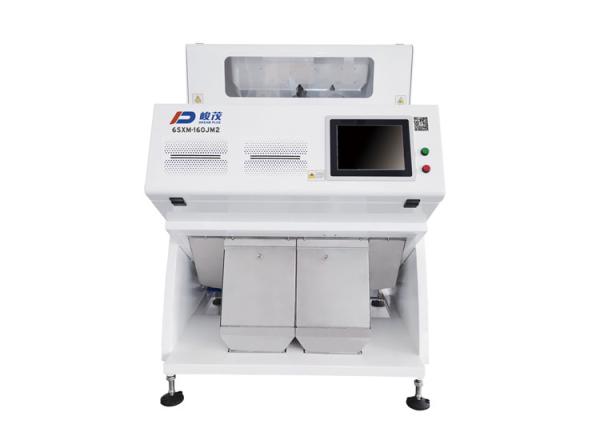

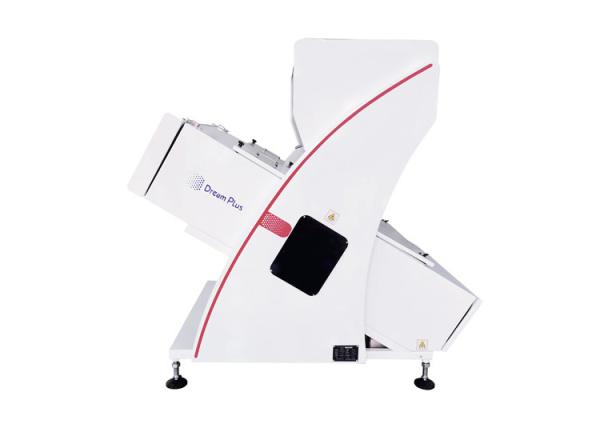

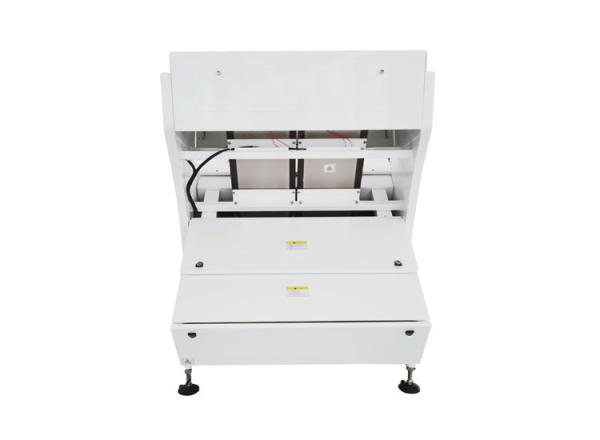

Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment
Specifications
Brand Name :
DREAM PLUS
Model Number :
JM2
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Wood enPackage
Model :
6SXM-160JM2
Chute :
2
Channel :
160
Capapcity(T/h) :
0.5-1.0
Voltage(V/Hz) :
220/50
CCD Resolution :
5400
Touch Screen :
15 inches
Ejector Brand :
Korea OEM
Filter Brand :
ARK
Warranty :
1 Year
Description

Portable CCD Rice Color Sorter 2-Chute

Roduct Overview

Color sorter is a machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. Our color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.

Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment

Technical Parameter

Model 6SXM-160JM2
Output(T/h) 0.5-1.0
Carryover Rate(Bad:Good) >10:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤1.8
Pressure(Mpa) 0.5-0.8
Weight(Kg) 600(±5%)
Diamension(mm) 1330*1630*1550

Sorting Material

Portable Ccd Rice Color Sorter 2 Chute Color Sorting Equipment

Technical Features

1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.

2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (2048 pixels) and high accuracy lens to realize image acquisition, which can detect 0.04mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.

3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.

4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.

5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.

6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.

7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.
