Coffee Bean Single Color Sorter With High Speed CCD
Coffee Bean Single Color Sorter With High Speed CCD
Coffee Bean Single Color Sorter With High Speed CCD
Coffee Bean Single Color Sorter With High Speed CCD
Specifications
Brand Name :
Dream Plus
Model Number :
64JM1
Certification :
CE、SGS、ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 business days
Packaging Details :
WOOD
Voltage(v): :
AC220V/50Hz
Power(Kw): :
≤1.5-5.5
Capacity: :
0.3~6.0T/h(±2%)
Weight(Kg): :
350-2200(±5%)
Optimized carryover: :
≥8:1
Modle :
64JM1
Description

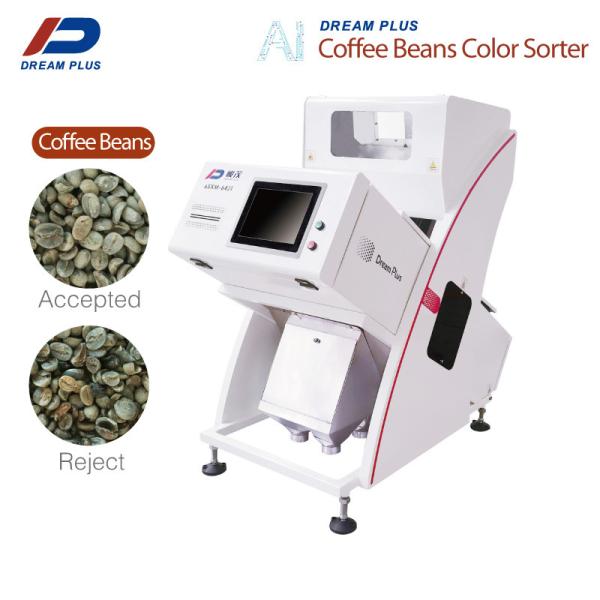

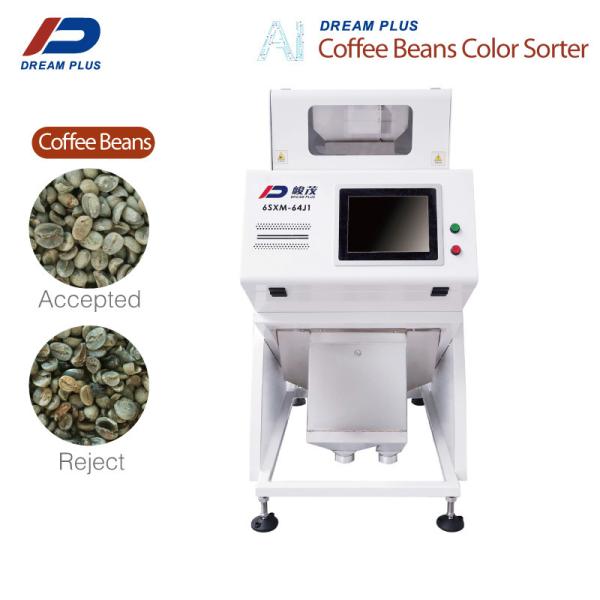

Coffee Bean Single Color Sorter

Coffee Beans Color Sorter

Product Parameters

Model Capacity(T/h) Power(Kw) Channel Weight(Kgs) Dimension(mm)
6SXM-64J1 0.3-0.5(±2%) ≤1.5 64 350 955*1630*1550
6SXM-80J1 0.3-2.0(±2%) ≤1.8 80 500 1045*1630*1550
6SXM-96JM1 0.4-0.8(±2%) ≤2.0 96 500 1045*1630*1550
6SXM-160JM2 0.5-1.0(±2%) ≤2.1 160 600 1330*1630*1550
6SXM-192JM3 0.6-1.2(±2%) ≤2.6 192 940 1700*1630*2030
6SXM-256JM4 0.8-1.5(±2%) ≤2.8 256 1300 2015*1630*2030
6SXM-320JM5 1.0-2.0(±2%) ≤3.0 320 1360 2330*1630*2030
6SXM-384JM6 2.0-3.0(±2%) ≤3.6 384 1420 2650*1630*2030
6SXM-448JM7 3.0-4.0(±2%) ≤4.0 448 1620 2980*1630*2030
6SXM-512JM8 4.0-5.0(±2%) ≤4.6 512 1800 3280*1630*2030
6SXM-640JM10 5.0-6.0(±2%) ≤5.5 640 2020 3900*1630*2030

Coffee Bean Single Color Sorter With High Speed CCDCoffee Bean Single Color Sorter With High Speed CCDCoffee Bean Single Color Sorter With High Speed CCD

Power system

1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.

Customer service

1. A full range of customer consulting services before ordering and good after-sales service.

2. 7*24 hour on-line and door-to-door service.

3. 7-15 business day perparring and arrive on time.

4. Full miantenance and transparency.

5. Strict acceptance and the implementation of tracking service.
