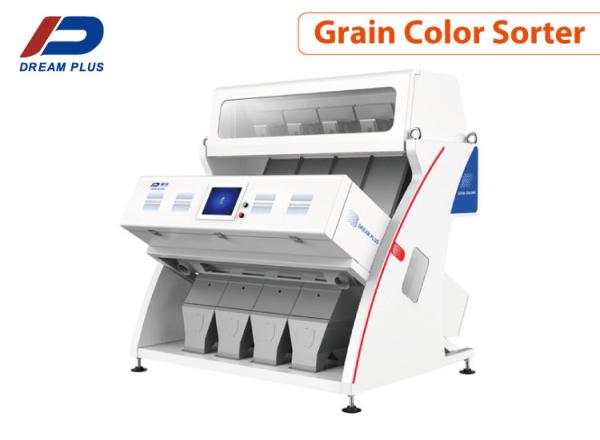

4 Chutes Grain Color Sorter For Beans Sorting High Precision
4 Chutes Grain Color Sorter For Beans Sorting High Precision
4 Chutes Grain Color Sorter For Beans Sorting High Precision
4 Chutes Grain Color Sorter For Beans Sorting High Precision
Specifications
Brand Name :
DREAM PLUS
Model Number :
JM4
Certification :
CE, ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Set/Sets per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Fumigated Wood Package
Model :
6SXM-256JM4
Channel :
256
Output :
2-4t/h
Camera Sensor :
TOSHIBA
Power :
2.6kw
Product Name :
Grain Color Sorter
OEM :
Support
Remote Control :
Support
Description

4 Chutes Grain Color Sorter For Beans Sorting With High Precision

What is a Grain Color Sorter?

Grain Color Sorters are among the newest technology in grain processing. The grain color sorter separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.

Dream Plus has solutions for sorting grains and seeds, including green and roasted coffee beans, sunflower seeds, and pumpkin seeds. Dream Plus grain color sorter identify and reject discolorations, sclerotia, and all types of foreign material.

Color sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.

Grain Color Sorter Technical Parameter
Model 6SXM-256JM4
Channel 256
Capacity(t/h) 2-4
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤2.6
Air Consumption(m3/min) ＜4.0
Pressure(Mpa) 0.6-0.8
Weight(kg) 1200(±5%)
Diamension(mm) 1870*1595*2040

Grain Color Sorter Technical Features

1 Linear CCD true color technology, color hd identification, high speed sorting identification finerSmall Grain Wheat Amd Color Sorter Machine P

2 Visible light full-color spectrum distribution, can free adjustment spectral region

3 By selecting different specifications ramp, do not need to replace the light source, can be suitable for a variety of grains, industrial pellet and sheet materials such as the classification

4 High-definition imaging technology, photo collection selected images, but to one thousand kinds of materials, one hundred thousand kinds of color to define color choose, truly achieve widely USES color to choose;

5 Each group can be more independence synchronization task, a variety of color optional, can be synchronized meet Gregory, unclick, variety of color separation at the same time

6 Leading LED lighting application technology, have high luminous efficiency, long service life, fast response speed, strong anti-jamming stability;

7 Powerful software platform operation, and easy to understand, easy to operate, fast

8 For skin, breaking disc, mildew, different colors, germination of peanuts and with rubble and clods of peanuts can realize precise sorting

Grain Color Sorter Sorting Material

4 Chutes Grain Color Sorter For Beans Sorting High Precision

After Sales Services:

• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Dream Plus products will be serviced and supported wherever customers are located.

• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
