Cumin Seeds/Fenugreek/Fennel Seeds/Coriander Seeds/Black Cumin Seeds

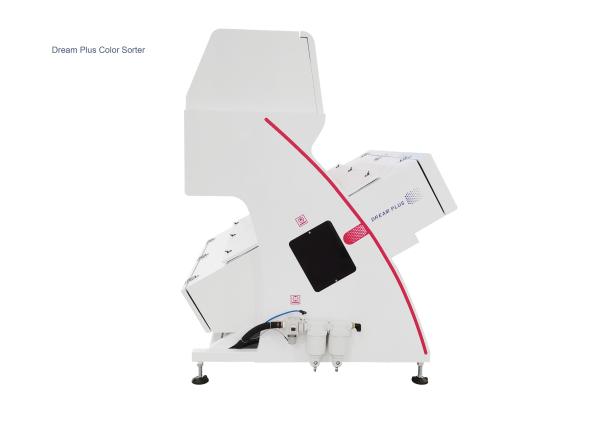

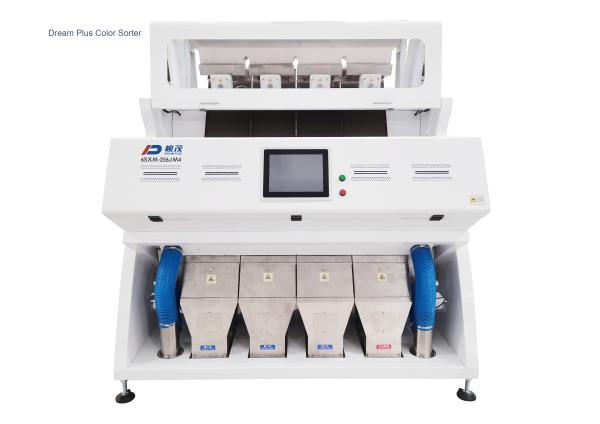

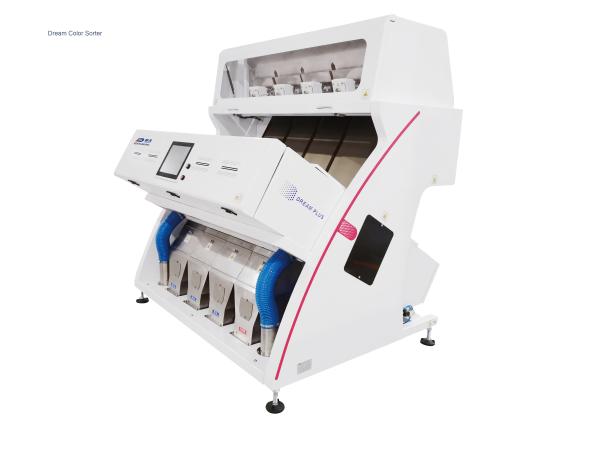

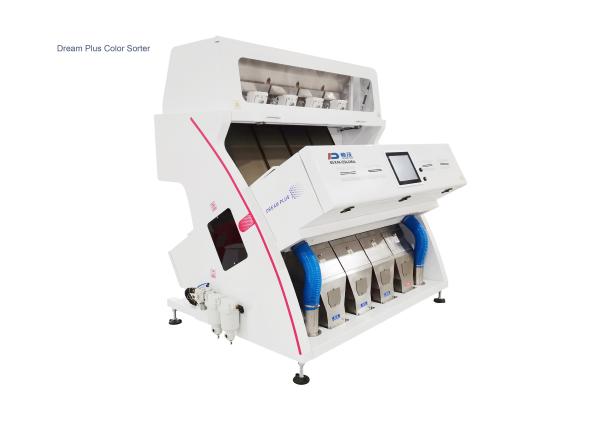

Dream Plus Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Technical Parameter

Sorting Material

Technical Advantages

1. Image processing system and algorithm
DSP+FPGA international leading processing technology, multi-modes complex algorithm combining color and space, providing “color sorting + shape selecting” function for different materials, free setting of multiple modes, arbitrary selection of thousands of materials.

2. Camera image acquisition system
Imported high precision camera lens, guarantee the accuracy of the image is clear.
Imported high-precision 5400-pixel high-speed linear CCD for high resolution identification and high speed color sorting.

3. Unique self-ejecting nozzle and valve drive mode
Applying specialized high speed air valve with high action response frequency, low power consumption and longer service life;
Reducing air consumption with faster response speed, more accurate
striking, small carryover and large output. long lifetime above 10 billion times.

4. Light source system
Leading LED optical design system, a variety of light sources can be selected to suit the different materials.
Solve the problems like high temperature, large loss, and short life etc, caused by long-term use of light source, to ensure that LED light source is durable under constant temperature.

5. Feeding system
Use the advanced feed detection system, Assure the uniformity of material flow.

6. Chute
Different slide ways are selected for different color sorting materials, to ensure that materials slide down more uniformly and the carryover is reduced.
