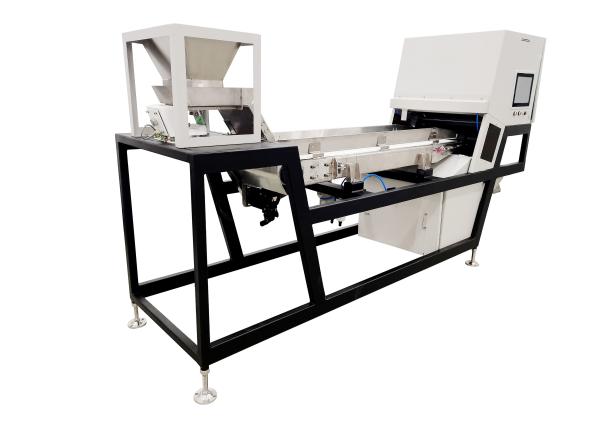

300mm Single Layer Belt Color Sorter 99.99% Accuracy
300mm Single Layer Belt Color Sorter 99.99% Accuracy
300mm Single Layer Belt Color Sorter 99.99% Accuracy
300mm Single Layer Belt Color Sorter 99.99% Accuracy
300mm Single Layer Belt Color Sorter 99.99% Accuracy
300mm Single Layer Belt Color Sorter 99.99% Accuracy
Specifications
Brand Name :
DREAM PLUS
Model Number :
DPLDS300
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
7-15 business days
Packaging Details :
WOOD
Voltage(v): :
AC220V/50Hz
Belt Width(mm): :
300
Level: :
Single Layer
Dimension(L*W*H mm): :
3098*820*1660
Capacity(T/h): :
0.3~0.5
Belt Speed(M/s): :
2
Description
300mm Belt Color Sorter
Name: DPLDS300
Voltage(v): AC220V/50Hz
Belt Width(mm): 300
Level: Single Layer
Dimension(L*W*H mm): 3098*820*1660
Core Tech: Camera(5400pixels)/5th Intel FPGA/Smart cloud service
Capacity(T/h): 0.3~0.5
Belt Speed(M/s): 2
Warranty: 1 year
Accuracy: 99.9%

Processing

Dream Plus Belt Color Sorter is a process of sorting many types. Putting the materials into the Hopper at first. Secondly, accessing to the Vibratory feeder and UV chutes. Then, sorting materials by Light source and Sensor. Therefor, accepted products will be into one entrance, or defective slot will be lauched by Signal processor and Ejectors (according to Air compressed).

Technical Parameter

Model DPLDS300
Output(T/h) 0.3~0.5
Carryover Rate(Bad:Good) ≥12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V/50Hz
Power Supply(Kw) ≤3.0
Pressure(Mpa) 0.4-0.6
Weight(Kg) 500(±50)
Diamension(mm) 3098*820*1660

Example

Belt Color Sorter can sort many different types of materials. We have the Innovation Tech which is Intelligent sorting, Intelligent Cloud services(optional), Intelligent Cloud monitor(optional) and Multi-function. Also, we have the core tech that s Micron camera, 5G strcutre, Intelligent magnetice control high frequency solenoid valve, Intelligent operationg system, full core upgrade, Intelligent dimming, Human-computer interaction and High speed feeding system.

300mm Single Layer Belt Color Sorter 99.99% Accuracy

300mm Single Layer Belt Color Sorter 99.99% Accuracy

300mm Single Layer Belt Color Sorter 99.99% Accuracy

Our Company

300mm Single Layer Belt Color Sorter 99.99% Accuracy

Power system

1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.

Customer service

1. A full range of customer consulting services before ordering and good after-sales service.

2. 7*24 hour on-line and door-to-door service.

3. 7-15 business day perparring and arrive on time.

4. Full miantenance and transparency.

5. Strict acceptance and the implementation of tracking service.
