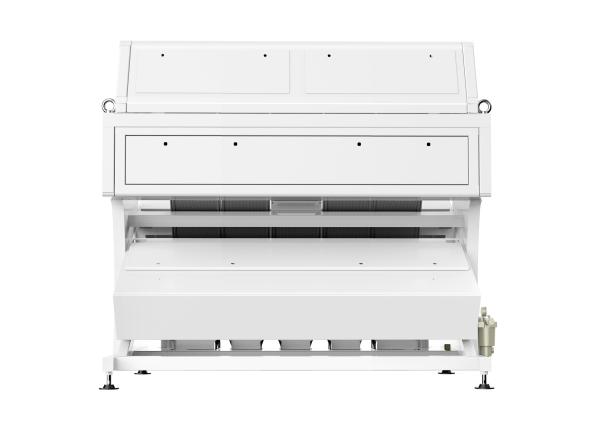

99.9% Accuracy Pine Nuts Color Sorting Machine RGB 5400
99.9% Accuracy Pine Nuts Color Sorting Machine RGB 5400
99.9% Accuracy Pine Nuts Color Sorting Machine RGB 5400
99.9% Accuracy Pine Nuts Color Sorting Machine RGB 5400
Specifications
Brand Name :
DREAM PLUS
Model Number :
6SXM-320JM5
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 Work Days
Packaging Details :
Wood Packaging
Model :
6SXM-320JM5
Channel :
320
Sorting Accuracy :
99.9%
Primary:Secondary Sorting :
4:1
Voltage(V) :
AC220V/50Hz
Camera Resolution :
RGB 5400
Power(Kw) :
≤3.0kw
Dimension(L*W*H mm) :
2330×1630×2030
Warranty :
1 year
Weight(Kg) :
1360(±5％)
Description

Pine Nuts Color Sorter/Pine Nuts Sorting Machine

Product Description

Dream PlusColor Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Technical Parameter

Model 6SXM-320JM5
Output(T/h) 1.0~2.0
Carryover Rate(Bad:Good) >20:1
Sorting Accuracy(%) ≥99.9
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤3.0
Pressure(Mpa) 0.4-0.6
Weight(Kg) 1360(±5%)
Diamension(mm) 2330*1630*2030


Sorting Material

99.9% Accuracy Pine Nuts Color Sorting Machine RGB 5400

Technical Features

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.

Pine Nut Color Sorter/Pine Nuts Separator

The nutritional value of pine nut is very high, in every hunk of pine seed meat, containing 16.7 grams of protein, 63.5 grams of fat, 9.8 grams of carbohydrate and mineral calcium 78 milligrams, 236 milligrams of phosphorus, 6.7 milligrams of iron and unsaturated fatty acid and other nutrients. The adipose composition in pine nut mainly is linoleic acid, linolenic acid and so on unsaturated fatty acid, have the effect of softening blood vessel and preventing and curing atherosclerosis.

Examples Of Color Sorting

Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.
