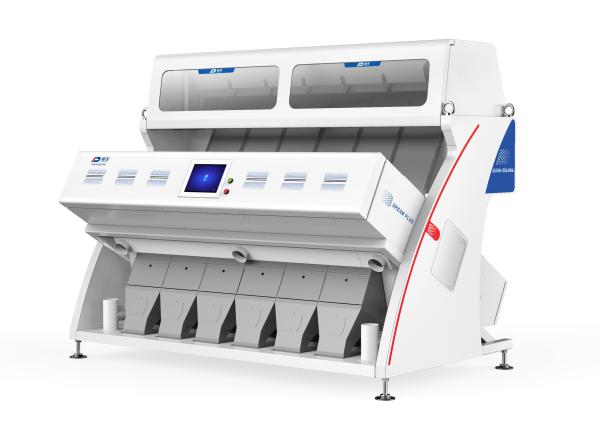

6SXM-384JM6 Full Color Optical Plastic Sorting Machine 0.5 - 0.8Mpa Pressure
6SXM-384JM6 Full Color Optical Plastic Sorting Machine 0.5 - 0.8Mpa Pressure
6SXM-384JM6 Full Color Optical Plastic Sorting Machine 0.5 - 0.8Mpa Pressure
6SXM-384JM6 Full Color Optical Plastic Sorting Machine 0.5 - 0.8Mpa Pressure
Specifications
Brand Name :
DREAM PLUS
Model Number :
JM6
Certification :
CE、SGS、ISO9001
Place of Origin :
Anhui China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Wooden Package
Model :
6SXM-384JM6
Capacity(kg/h) :
800
Chutes :
6
Sorting Accuracy(%) :
99
Channel :
384
Carryover(bad:good) :
15:1
Voltage(v/hz) :
220/50
Power(kw) :
≤3.6
Weight(kg) :
1500
Dimension(mm) :
2528*1620*2040
Warranty :
1 year
Description

Full Color Optical Plastic Color Sorter For Sorting PP PE PVC ABS Flakes

color sorter work principle:

Its work principle Is according to materials' different color to separate them to different groups,to reach improve the materials quality.For example,it can separate red plastic particles from mixed different colors group, remove the bad plastic,etc.


Dream Plus Cloud Color Sorter Function:

  1. Cloud Intelligence
    Global initiative one button cloud intelligent technology can intelligently recognize,analyze and calculate input impurity to adjust running data without the inconvenience caused by the complex operation.
  2. Intelligent Multilevel sorting
    Global initiative intelligent multilevel sorting technology ensures the fine classification of material and perfect realization of the maximum value of color sorting.
  3. Intelligent Value
    Intelligent high-frequency solenoid value with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.

6SXM-384JM6 Full Color Optical Plastic Sorting Machine 0.5 - 0.8Mpa Pressure

Technical Parameter

Model 6SXM-384JM6
Output(T/h) 3~4
Carryover Rate(Bad:Good) >15:1
Sorting Accuracy(%) ≥99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤3.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1500(±5%)
Diamension(mm) 2528*1620*2040

Our Advantage :

. Own factory , quality , shipping time under control , Competitive price .

. CE, ISO9001 Certificate, Quality guarantee

. R&D team keep developing system , and we can provide customer update system freely .

. Management have more than 10 years experience in this industry

. 7*24 hours after sale service

. Anysort engineer can go customer factory help adjust machine and trainning .
