Single Component

Oil-soluble Polyurethane
Grouting Flui

—

It is used for deformation cracks in the basement of buildingsstructural joints of construction joints, waterproof plugging andreinforcement of the inner walls of tunnels in subway and tunnelprojects, and reinforcement of railway roadbeds.

Polyurethane Grouting fluid · Special Polyurethane Material · Made In China

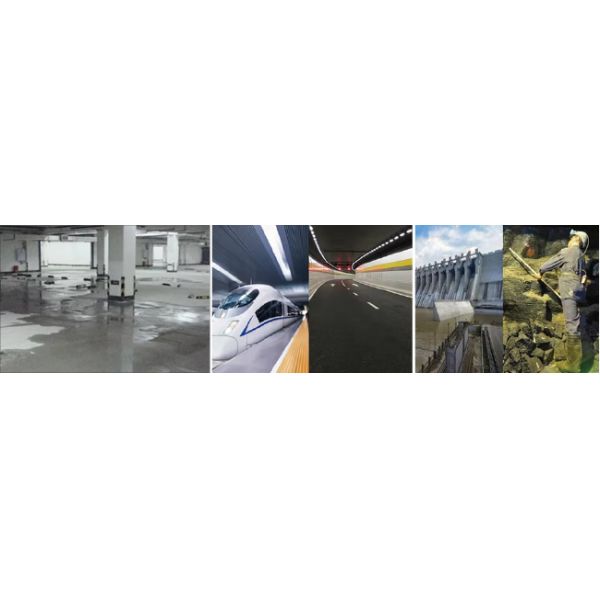

Product application range

—

1. Building basement leaking: Deformation cracks,con-struction joints, structural joints
2. Subway tunnel: Subway tunnels, subway platforms, highway tunnels, railway subgrade tunnel walls waterproof plugging, reinforcement and reinforcement.
3. Water conservancy and hydropower: Before painting, remove the lime sand, welding slag, oil, embroidery and old patent leather on the surface of the workpiece.

Fill the air leakage of the base material in the form of grouting,and treat the leakage problem from the root cause.

Under the action of the pressure of the grouting equipment,the penetration range can reach 3 meters, so there is no need for dense needles

Polyurethane Grouting fluid · Special Polyurethane Material · Made In China

Product Testing

—

Polyurethane Grouting fluid · Special Polyurethane Material · Made In China

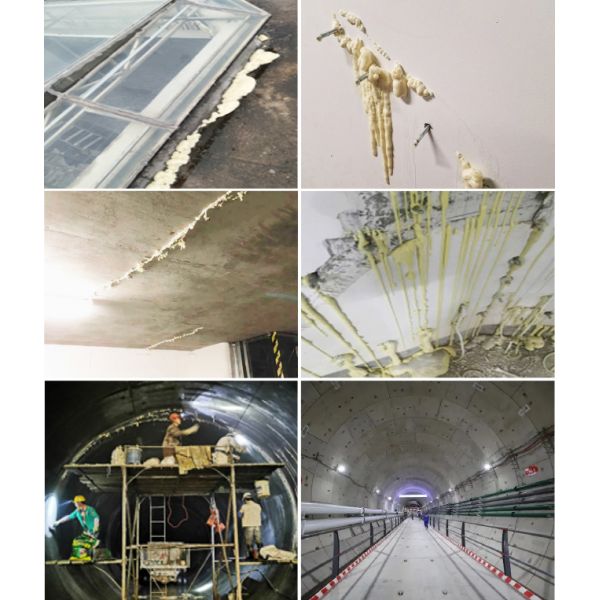

Construction instructions for different environments

—

Structural cracks and seepage

1.Drill holes at an angle of 45 degrees to the left orright 2-5 cm from the lower part of the crack to the depthof half the thickness of the structure. Drill holes insequence from low to high, with an appropriate hole spac-ing of 20-30 cm. After drilling to a high place, bury thewater stop needle.Since the cracks in the general structureare irregular, special attention should be paid to the factthat the grouting needs to cross the crack surface whendrilling, and the grouting will be effective.
2.After the grouting water stop needle is placed, it ispoured with chemical grouting material until the groutseeps out of the surface of the structure.
3.48 hours after the grouting is completed, the grout-ing water stop needle can be removed.

Honeycomb leaking

1.At the range of the honeycomb, drill a hole every25-30 cm, the depth is generally suitable for the thickness ofthe structure, and then place the grouting water stop needleand rotate it to fix it.
2.After the water-stop needle is placed, inject thechemical grouting material with a high-pressure grouting machine until it is found that the grouting material seepsout of the surface of the structure.
3.48 hours after the grouting is completed, the grouting water stop needle can be removed.

Polyurethane Grouting fluid · Special Polyurethane Material · Made In China

Note

—

1. Wear protective equipment (such as gloves, goggles) during construction to avoid direct contact with the skin, if there is contamination should be washed with plenty of water.
2. This product is stored in a cool place, construction must pay attention to ventilation and away from the source of fire materials not solidified before the construction area away from open fire.

Product packaging

—

1. Stored in clean, dry and sealed iron drums
2. Transport according to regular product requirements, prevent rain, exposure, squeezing, and collision, and ensure that th packaging is intact.
3. The product should be stored in a ventilated, dry and cool place, away from direct sunlight and rain. The storage temperature should not be higher than 40℃.
4. Under normal storage conditions, the shelf life is 9months.
