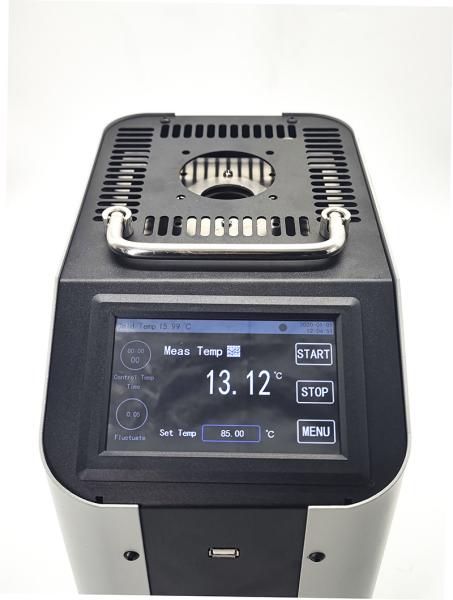

XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
XinYI382-150B Low Temperature Calibrator Dry Block Furnace Thermostat Portable
Specifications
Brand Name :
XINYI
Model Number :
XinYI382-150B
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Wooden crate
customized support :
OEM, ODM, OBM
material :
ABS
type :
Temperature Calibrator
Product name :
Dry Body Temperature Furnace
Temperature :
-30℃~150℃
Display :
LCD
Type :
Induction Furnace
Resolution rate :
0.01
Inserted depth :
165mm
MOQ :
1 Set
Core Components :
Bearing, Gear
Power :
Electronic
Application :
Temperation Calibration
Theory :
TEMPERATURE CONTROLLER
Description
-30 ℃~150 ℃ Low Temperature XinYI382-150B Thermostat Portable Dry Temperature Furnace
A dry furnace can provide a stable, uniform, and accurate temperature environment (temperature field), similar to a constant temperature bath (liquid bath), but it is easy to carry and does not require the placement of liquids. The time for the dry furnace to reach the predetermined temperature point and stabilize the temperature is 5 to 10 times faster than that of a constant temperature bath, which can greatly save the time of calibration personnel and improve the speed of temperature calibration. The portability of the dry furnace enables on-site calibration work, thereby solving the difficulty of transporting and moving the constant temperature bath.
Temperature sensors such as mercury thermometers, expansion thermometers, thermocouples, thermistors, etc. can be easily calibrated through a dry body furnace.
Host operation mode Touch Screen
Abnormal protection Power cord failure, main cable failure
Temp stability Around 10 mins
Resolution rate 0.001℃
Accuracy ±0.1℃
Fluctuation ±0.01℃/10min(Typital)
±0.02℃/10min(Max)
Stability time Around 10 min
Size of Heating insert φ30mm/160mm
Axial uniformity(30mm) ±0.4℃(@0℃)
