Specifications
Price :
CN¥248.36/pieces 1-9 pieces
warranty :
1 Year
customized support :
OEM, ODM, OBM
place of origin :
Shaanxi, China
brand name :
XINYIYB
material :
ss
Accuracy :
0.1%
Product name :
Instrumentation Manifolds
Material :
Stainless Steel
Dimensions :
22x13x4cm
Weight :
3 Kg
Description

Stainless Steel Integrated Three Valve Group SF-2B Three Valve Group 3051 E+H EJA Differential Pressure Transmitter

Products Description

Instrumentation Manifolds

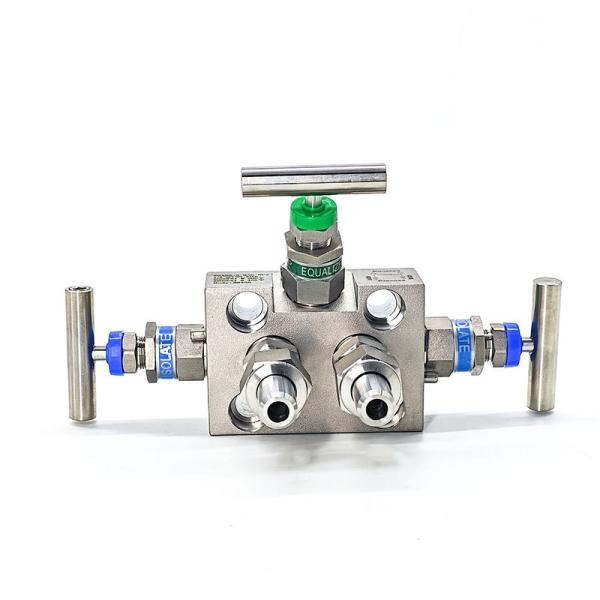

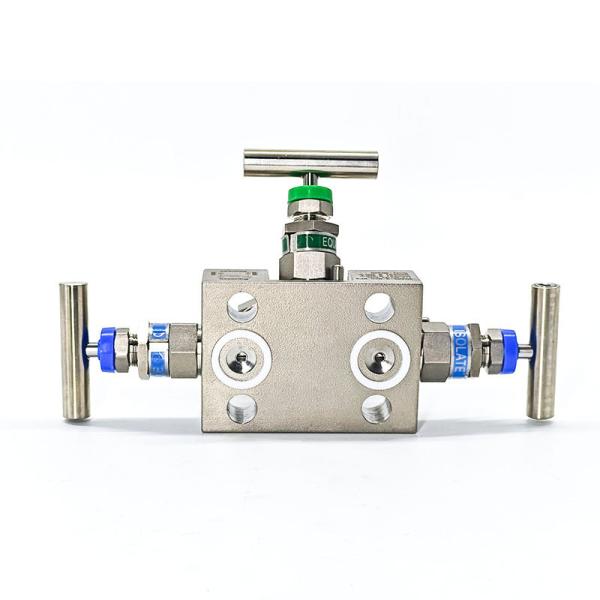

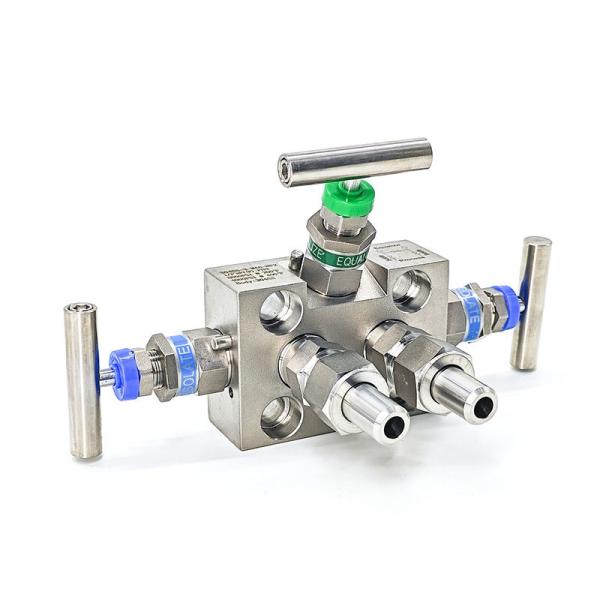

A three-valve set consists of three valves that communicate with each other. According to the role of each valve in the system can be divided into: the left is a high pressure valve, the right is a low pressure valve, and the middle is a balance valve. The three valve group is used together with the difference transmitter, and the function is to switch on or disconnect the positive and negative pressure measuring chamber from the pressure induction point; Or the positive and negative pressure measuring chamber is disconnected or switched on.
When the flow or differential pressure sensor instrument is connected to the process pipeline, the "three-valve group" is used, and the role is: 1. When the medium is added to the pipeline from the initial state (empty), the pressure on both sides of the sensor will suddenly change, and the pressure difference may damage the sensor of the transmitter when it is too large. In order to avoid this, the valves A and B on both sides of the sensor should be closed first, and the bypass valve C should be opened. 2. After filling the pipeline with medium and approaching stability and balance, open one of A or B to evenly apply pressure on both sides of the sensor; 3, close valve C, and open another valve in A or B, the sensor starts to work normally; 4. The closing order is reversed. In addition, the 3-valve group has other functions, such as cleaning the pipeline after a period of operation, and the sensor part is not affected (the pipeline is bypassed).
Stainless Steel Integrated Three Valve Group SF-2B 3051 E+H EJA Pressure Transmitter
Stainless Steel Integrated Three Valve Group SF-2B 3051 E+H EJA Pressure Transmitter
Stainless Steel Integrated Three Valve Group SF-2B 3051 E+H EJA Pressure Transmitter
Specification
item
value
Product Name
Instrumentation Manifolds
Model code
0305RC32B11B4
Place of Origin
China
Warranty
2 years
Customized support
OEM,OBM,ODM
Meterial
Stainless steel
Power
Manual
Max Pressure
60 Mpa
Weight
3 Kg
Port Size
1/2’‘
