Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Specifications
Brand Name :
XINYIYB
Model Number :
XYTGFM-XXX
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product Name :
Thermal Gas Mass Flow Meter
Type :
Variable Area Air & Gas Flowmeters
Material :
Stainless Steel
Medium :
Gas
Pipe Diameter Range :
DN15-DN1000
Accuracy :
2.5%FS
Output :
4-20mA /RS485
Sensor Operating Temperature :
-40~300℃
Converter Operating Temperature :
-20~45℃
Working pressure :
≤2.5Mpa
Power Supply :
DC 24V
Power :
>18W
Description
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
The sensor part of the thermal gas mass flow meter consists of two reference level platinum anode temperature sensors. During instrument operation, one sensor continuously measures the medium temperature T1; Another sensor self heats to a temperature higher than the medium temperature T2, which is used to sense the fluid flow rate and is called a velocity sensor. The temperature AT=T2-T1, T2>T1. When there is fluid flowing through, the gas molecules collide with the sensor and take away the heat of T2, causing the temperature of T2 to decrease. To keep T constant, it is necessary to increase the power supply current of T2. The faster the gas flows, the more heat is taken away. There is a fixed functional relationship between the gas flow rate and the increased heat, which is the principle of constant temperature difference

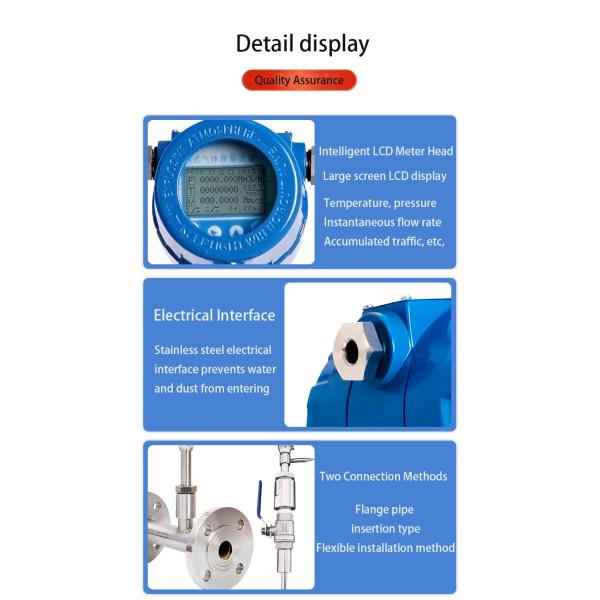

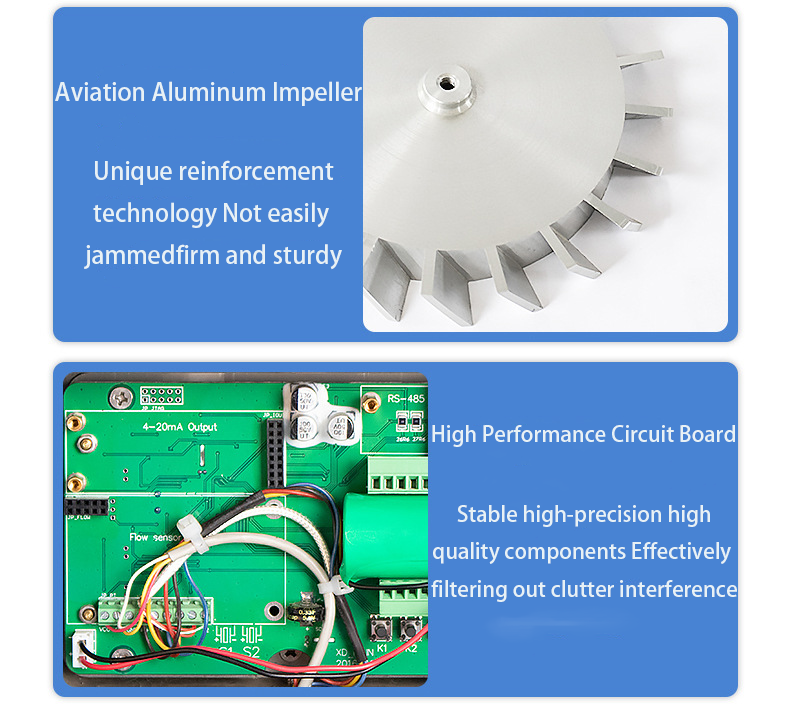

Detail images
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Thermal Gas Mass Flow Meter Insertion Type Natural Gas Oxygen Pipeline Type Micro Gas Flow Meter
Specification
Performance
Technical Parameter

Structural Style
Plug-in Type
Pipeline Type
Pipe Diameter Range
DN15-DN4000
DN15-DN2000
Flow Rate Range
0.1-12Nm/s

Accuracy
±1~2.5%

Operation Temperature
Sensor: -40~220 ℃ Converter: -20~45 ℃

Working pressure
Medium pressure ≤ 2.5Mpa
Medium pressure ≤ 4Mpa
Power supply
DC 24V AC220V ≤18W

Response Speed
1S

Output Signal
4-20mA RS485

Alarm Signal
1-2 relay normally open contacts, 10A/220V/AC, 5A/30V/DC

Pipe Material
Carbon steel, stainless steel, plastic, etc
