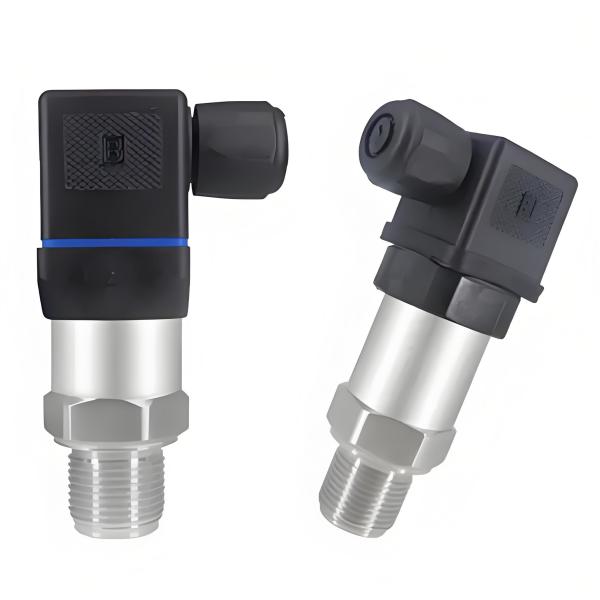

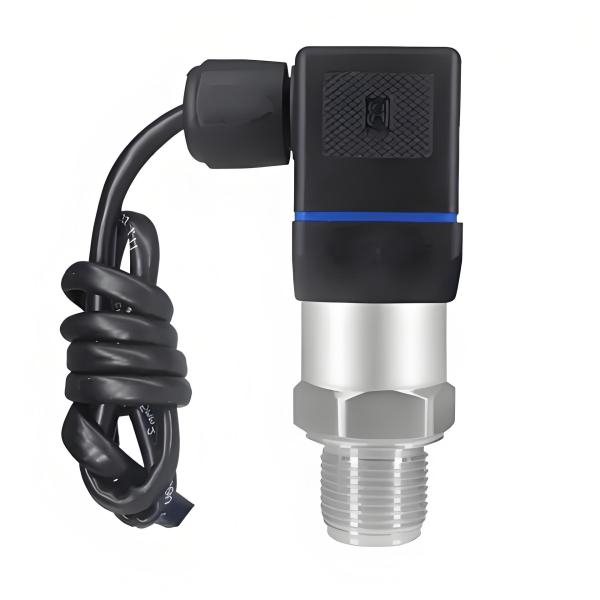

XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
Specifications
Brand Name :
XINYI
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100pcs/Months
Delivery Time :
5-8 work days
Packaging Details :
carton
Ambient Temperature :
-40~85℃
Best Accuracy :
0.1%
Min Range :
10kpa
Pressure Connections :
M20*1.5 G1/4 NPT1/4 (or Customized)
Protection Level :
IP65
Product Features :
Good safety, Strong adaptability
Certify :
Exida and TUV SIL 2 / SIL3 Certified
Electrical Interface :
M20*1.5 or 1/2npt
Maximum Working Pressure :
32 MPa (4500 psi)
Medium Temperature :
- 40-100 ℃
Description

XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor


This is piezoresistive pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core.Unlike ordinary pressure sensors, which can only measure gauge pressure, this product can also measure absolute pressure.The transducer is automatically tested and temperature compensated by laser resistance adjustment technology. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance.With long-term stability and high accuracy, it widely used in the pressure measurement and control fields of HVAC,Auto,Pumping,water treatment and etc.


Pressure type Gauge pressure Seal pressure Absolute pressure
Range -1~700Bar
Signal output 0.5-4.5V I2C 4-20mA 0-5V 0-10V 0-100mV Others
Scope of power supply 5V 3.3-5V 12-30V 9-30V 10V 12-30V
Accuracy 0.5%
Working temperature -20~70ºC
Electrical connection Cable outlet Mini DIN43650 GX12-3 Packard M12 4Pin
Process connection G1/4 1/4NPT M20x1.5
M10x1 G1/8 1/8NPT
7/16-20UNF Female Other


XINYI 4-20mA Absolute Pressure Transmitter For Air Gas Piezoresistive Pressure Sensor
