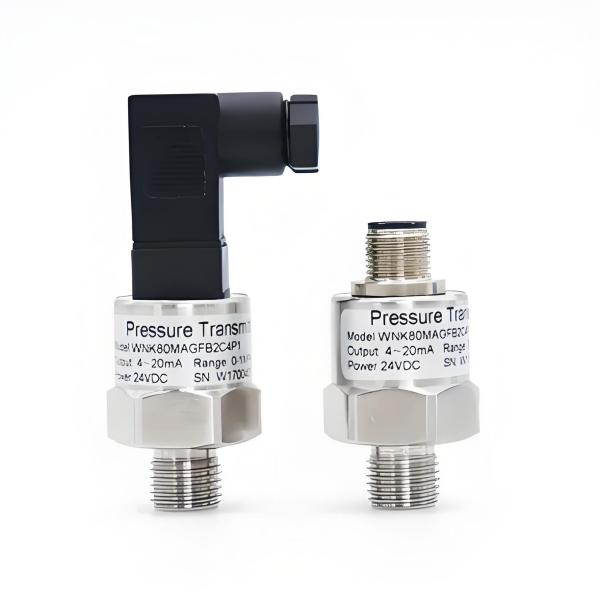

4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
Specifications
Brand Name :
XINYI
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
carton
Ambient Temperature :
- 40-85 ℃
Process Connection :
1/4" NPT
Hs Code :
9026201090
Cover Flange Material :
SUS316
Pressure Range :
0-500PA~200kpa
Accessary :
U-shaped L-shaped, mounting bracket
Specification :
Aluminium alloy or other
Power :
24VDC(12-45)VDC
Installation Method :
Flange Installation
Protection Level :
IP 65
Secondary Variable :
Static Pressure
Communication Protocol :
HART
Description

4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor


•Specific high performance ASIC conditioning circuit;

•Dry ceramic capacitive pressure sensor;

•Robust ceramic capacitive sensitive membrane;

•Excellent anti-corrosive and anti-wear performance;

•Suitable for pollution and corrosive environment;

•Various electrical connectors optional;

•Rapid response, no hysteresis;

•Wide operating temperature range -40~135ºC;

•Anti-icing;

•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;

•Accurate, stable and reliable;


Applicable media Liquid, Gas
Pressure range 0-100kPa~150bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC

4-20mA Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor
