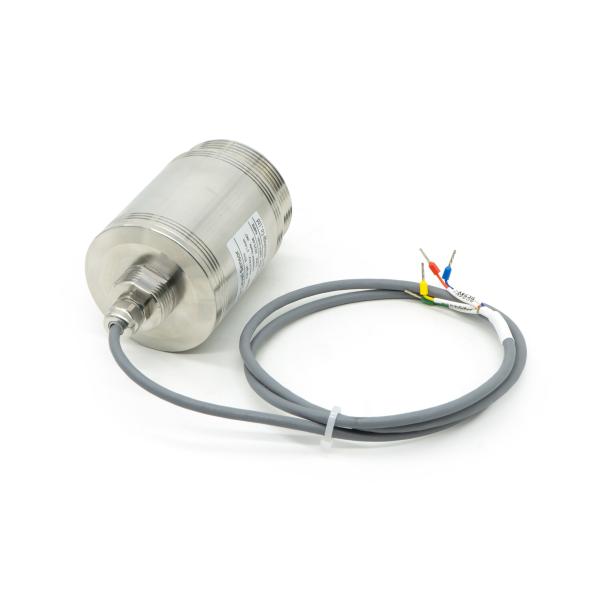

XYLD-08C Metal Radar Level Gauge FM Continuous Wave 80G Radar Level Gauge

Based on frequency modulated continuous wave (FMCW) technology, the 80G radar level gauge measures the height or distance of materials by transmitting and receiving microwave signals. Its working principle is to emit microwave signals whose frequency changes linearly with time. When the signal encounters the surface of the tested material, it will reflect back and form a frequency difference with the emitted signal. By measuring this frequency difference and time delay, combined with the propagation speed of radar waves, the height or distance of the material can be accurately calculated.

The 80G radar level gauge achieves closed-loop control from signal transmission to liquid level output through a triple technical architecture of high-frequency signals, AI algorithms, and intelligent diagnosis, making it particularly suitable for high-precision measurement under harsh working conditions. Its schematic design takes into account both physical optical characteristics and digital signal processing technology, making it an ideal choice for Industry 4.0 intelligent tank area management.

Product Advantages

1.APP debugging/4-20mA+RS485 output

2.Strong anti-interference ability

• Design of low-noise anti-interference circuit;
• 3 ° beam angle, traditional water vapor, dust foam, suitable for narrow and complex working conditions;
• Original noise suppression algorithm and false echo learning ability;

3.High end texture and strong performance!

• Using excellent metal materials such as aviation aluminum alloy and stainless steel for processing, high-end atmosphere and corrosion resistance, with excellent mechanical properties;
• 80GHZ frequency modulated continuous wave radar with an accuracy of ± 1mm and a maximum detection range of 85M;
