Specifications
Brand Name :
TIPTOP
Model Number :
Tube for perforating gun
Certification :
Quality Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 pcs per month
Delivery Time :
7-60 days
Packaging Details :
Seaworthy Package
Product name :
Tube for perforating gun
Usage :
for manufacture of perforating gun body
Length :
8 - 12 m
OD :
60.3 - 178 mm
Grade :
32CrMo4 and 25Mn2Mov
Material :
Alloy Steel
Description

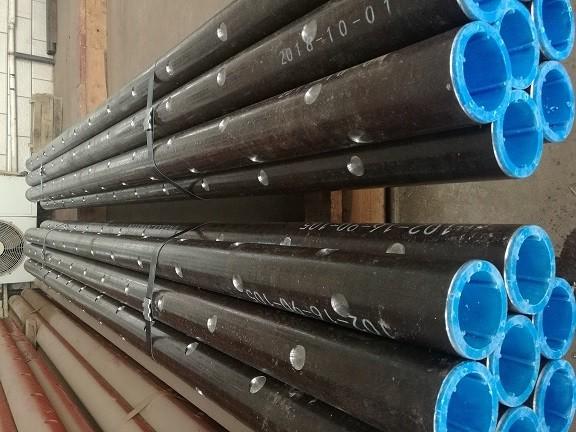

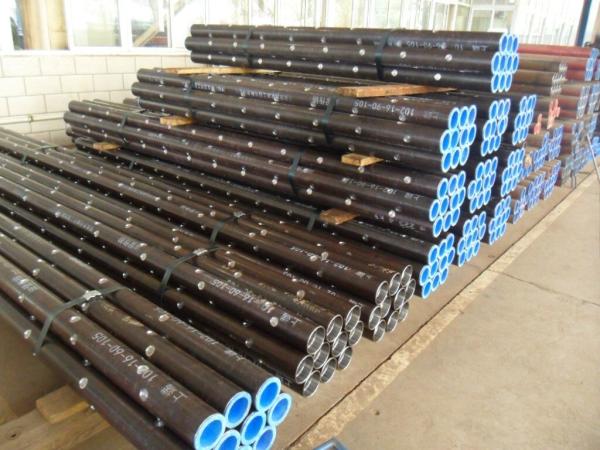

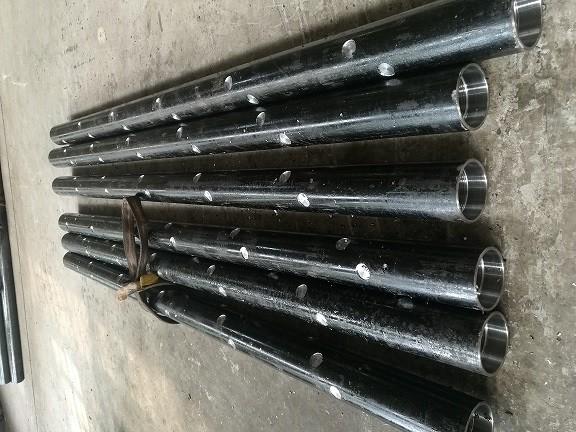

Oil Well Perforators - Alloy Steel Tube for perforating gun length 8 - 12m

Uses:for manufacture of perforating gun body

Specifications

Outside diameter(mm) Wall thickness(mm)
60.3 5.00
68 5.50 6.3
73 5.51 7.82 9.19
82.5 9.00
83 9.00
88.9 6.45 7.10 8.80 9.19 10.0 12.0
95 8.00 10.00
96 10.00
101.6 7.00 9.00 9.50 10.00 11.00
108 8.00
114.3 8.50 9.50 10.00 11.10 12.50 13.00
127 9.50 11.00 12.50
159 12.00 12.50 13.00
178 12.00

Chemical composition(%)

Material C Si Mn P S Cr Mo V
32CrMo4 0.29-0.36 0.17-0.37 0.50-0.80 <0.015 <0.010 0.90-1.20 0.20-0.30 -
25Mn2Mov 0.21-0.29 0.15-0.50 1.30-1.90 <0.015 <0.010 - 0.10-0.30 0.05-0.20

Mechanical properties

Grade Specified total elongation strength(Mpa)

tensile strength

(Mpa)

Elongation

(%)

 AKV (J)
Longitudinal sample dimension (mm) Transverse sample dimension(mm)
10 x 10 10 x 7.5 10 x 5 10 x 10 10 x 7.5 10 x 5
No less than
32CrMo4 724 793 14 57 46 32 38 31 21
25Mn2Mov 724 793 14 57 46 32 38 31 21

Note:a No impact test when OD<73.03mm,longitudinal impact test when 73.03<OD<101.6mm;transverse impact test when OD>101.6mm.The testing temperature is 0℃.The average value of 3 impact samples shall not be lower than the specified value in the table,and only the observed energy of 1 impact sample can be lower than the specified value,but not lower than 2/3 of the specified value.

Length:8-12m
