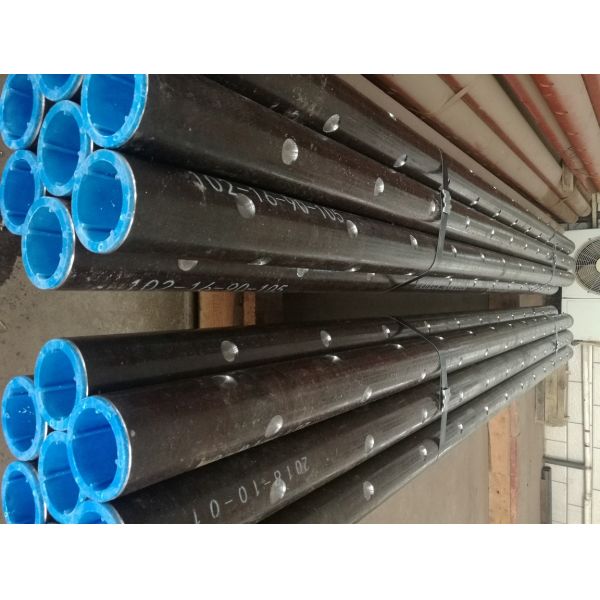

Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Wireline Oil Well Perforators Deep Fracture High Energy Gas Fracturing HEPF Perforator
Specifications
Brand Name :
TIPTOP
Model Number :
HEPF Perforator
Certification :
Quality Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200pcs per month
Delivery Time :
7-60 days
Packaging Details :
Seaworthy Package
Key Word :
High Energy Gas Fracturing Perforator
Usage :
Wireline Service, Perforating Service
Feature :
Deep Fracture
Casing OD :
140mm
Shot Density :
16spm
Material :
High Strength Alloy Steel
Description

Oil Well Perforator, Deep Fracture High Energy Gas Fracturing HEPF Perforator

Based on conventional perforation and HEGF (High Energy Gas Fracturing), HEPF perforator breaks through traditional ideas, combining perforation and fracturing which are put in action sequentially, resulting in clean perforation tunnels and forming tunnel-fracturing network around the near wellbore, therefore greatly increases near wellbore percolation area, overcomes restriction of critical conditions, fully utilizes residual energy of shaped charge and removes compaction damage created by perforation.

This perforator has features of deep fracture, large area of communication, high temperature resistance and being simple and reliable in operation. Compared with fracturing operation, it has advantages of being simple in operation and low cost.

Performance Index:

OD (mm): 89

Propellant Loaded (g/m): 600

Shot Density (spm): 13

Specification

No. Perforator Model Shot Density (spm) Phasing (deg) Charge Model Temperature Rating
(°C/2h)		 Concrete
Casing OD (mm) E.H. (mm) Pene.
(mm)
1 89DP30R16-70 16 90 DP41RDX25-1 163 140 9.6 827
2 95DP30R13-105 13 45 SDP40RDX30-1 163 140 9.7 798
3 102DP25R16-70 16 90 DP44RDX38-3 163 140 10.9 869
4 102DP25R16-70 16 90 DP44RDX39-5 163 140 12.2 925
5 102DP21R16-70 16 90 SDP45RDX45-1 163 140 10.7 1030
6 102BH20R16-70 16 90 BH48RDX32-1 163 140 18 546
