Specifications
Brand Name :
TIPTOP
Model Number :
9 5/8''
Certification :
Quality Inspection Certificate
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
100 pcs per month
Delivery Time :
5-60 days
Packaging Details :
wooden box
Standard :
API 7-1
Key Word :
Positive Displacement Motor
Working Life :
400 hours
Stator Type :
NBR
Description :
Downhole Mud Motor
Apply for :
Directional Drilling
Description

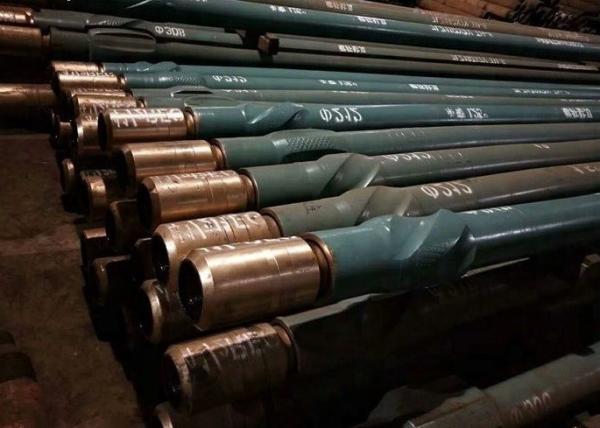

High Torque 9 5/8'' Directional Drilling Downhole Mud Motor with Long Service Life

Tiptop specializes in design and manufacture of downhole mud motors. Our downhole mud motors in difference sizes are available from 1-11/16”OD (43mm) to 11-1/4”OD (286mm) and models mainly include adjustable bend housing type, water-based mud type, oil-based mud type, and salty-based mud type. Moreover, we provide customized service for the spare parts according to customer’s drawings. Our 9-5/8’’ downhole motor is widely used in oil & gas directional drilling.

Configuration:

complete with bearing assembly,

bit box connection: 7-5/8’’ REG;

screw on stabilizer 17-3/8’’ spiral 3 blades;

adjustable assembly, connecting rod assembly;

power section 6/7 lobes, 5.0 stages

with catch rod mechanism & crossover sub having box connection 6-5/8’’REG

stator elastomer compatible to resist temperature up to 120°C.

Integrated Services:

We can provide correct selection of downhole motors according to customer’s environmental and drilling conditions.

The downhole motors including spare parts are available to be customized according to customer’s operation requirements.

We can assist customer in setting up maintenance and service station for downhole motors.

Name Downhole Motor
Model 6LZ244 x 7/5
Size Ф245 (Stabilizer Ф441)
Minor Diameter Ф135.70 mm
Lobes of Stator 7
Wave Crest-Trough OD Ф136.42 mm
Lobes of Rotor 6
Trough Chrome plating thickness 0.08mm
Crest Chrome plating thickness 0.15mm
Stator & Rotor Interference 0.72mm
Pressure Difference Inspection 5.45MPa
Connected Thread Up 6 5/8'' REG
Connected Thread Down 7 5/8'' REG

Models:

Model Tool OD Bit Size Connection Thread Lobe Stage
mm in mm in Top Bottom
LZ244x7.0-6-1026 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 1:2 6
3LZ244x7.0-6-1026 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 3:4 6
5LZ244x7.0-4-1008 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 5:6 4
5LZ244x7.0-5-1008 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 5:6 5
5LZ244x7.0-6-1008 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 5:6 6
C5LZ244x7.0-4-1260 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 5:6 4
7LZ244x7.0-4-1008 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 7:8 4
C7LZ244x7.0-4-1264 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 7:8 4
7LZ244x7.0-5-1096 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 7:8 5
7LZ244x7.0-5.7-1008 244 9 5/8 311-445 12 1/4-17 1/2 6 5/8REG 6 5/8REG (7 5/8REG) 7:8 5.7

For more details, please review .
