Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Simple Structure Downhole Fishing Tools Cone Junk Catcher For 4 5 / 8 '' ~12 1 / 4 '' Well Hole
Specifications
Brand Name :
TIPTOP
Model Number :
Cone Junk Catcher
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000 pcs per month
Delivery Time :
10-60 days
Packaging Details :
seaworthy wooden box
Hole Size :
4 5/8''~ 12 1/4''
Connection :
API
Catch Size :
45~220mm
Application :
Catch Small Junks
Type :
Downhole Fishing Tool
Advantage :
Simple Structure
Description

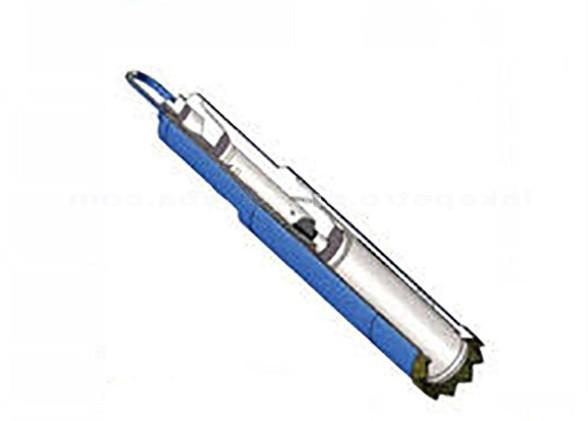

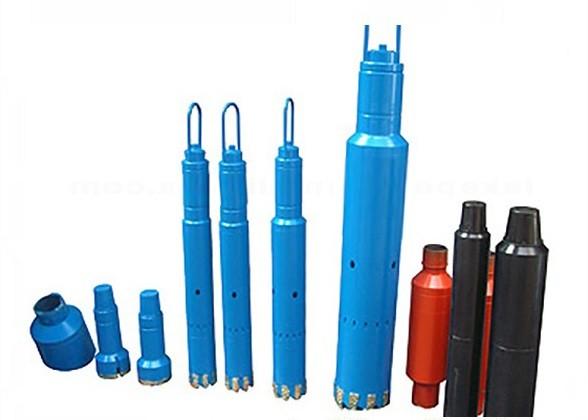

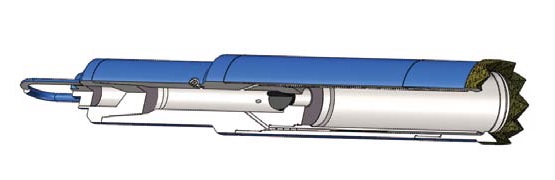

Downhole Fishing Tool Cone Junk Catcher for 4 5/8''~12 1/4'' Well Hole

Cone junk catcher is used to catch the small junk from down hole, such as cone, cutters, hand tools, iron junk, etc. It has advantages of simple structure, safe and reliable using. Especially in the deeper structured well. It can protect the bit when using this tool to clean the bottom hole before using the PDC bit.

Please email us for your cone junk catcher inquiries.

Specification

OD
mm(inch)		 Specification Connection
98 (3 7/8) Suitable for 127 (5)” casing and 117 (4 5/8”)well hole, catch max. OD 45,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 2 7/8REG
111 (4 3/8) Suitable for 140 (5 1/2”) casing and 117 (4 5/8”) well hole,catch max.OD 55,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 2 7/8REG
146 (3 7/8) Suitable for 178 (7”) casing and 152.4 (6”) well hole, catch max. OD 90,
finger type claw shrinking pressure 17.5 Mpa,bursting pressure 21.8 Mpa.		 NC38
194 (7 5/8) Suitable for 244 (9 5/8”) casing and 216 (8 1/2”) well hole, catch max.OD 135,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 NC50
200 (7 7/8) Suitable for 244 (9 5/8”) casing and 216 (8 1/2”) well hole, catch max. OD 135,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 NC50
210 (8 9/32 ) Suitable for 244 (9 5/8”) casing and 216 (8 1/2”) well hole,catch max. OD 135,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 NC50
295 (11 39/64) Suitable for 311 (12 1/4”) well hole,catch max.OD 220,
finger type claw shrinking pressure 17.5 Mpa, bursting pressure 21.8 Mpa.		 6 5/8REG
