Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Alloy Steel Oil Well Drilling Tools Crossover Sub For Drill Pipe Drill Collar And Kelly
Specifications
Brand Name :
TIPTOP
Model Number :
Crossover Sub
Certification :
MTC
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
2000pcs per month
Delivery Time :
10-50 days
Packaging Details :
seaworthy export box
Product Name :
Crossover Sub
Function :
Connection with Drill Stem
Material :
Alloy Steel
Connection :
API
Property :
Drill String Accessories
Type :
Drill Pipe Sub, Drill Collar Sub, Kelly Sub
Description

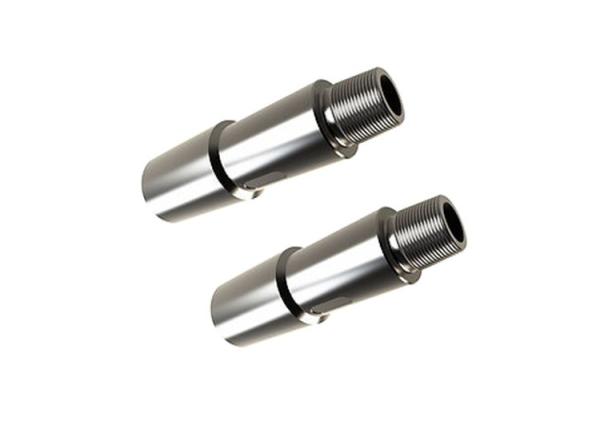

Oil Well Drilling Tools Crossover Sub for Drill Pipe, Drill Collar and Kelly

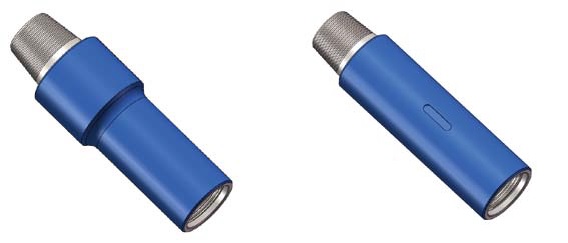

Crossover sub is mainly used to connect upper and lower drill tools in different connectors in drilling operations. Also it can be used to protect other tooling in drill stem (called saver sub) or be used to deliver outgoing air to the bit face just above the bit (called bit sub).

The length of crossover subs is generally measured from shoulder to shoulder. Typical lengths range from 6" - 28" long going up in increments of 2 inches with AISI 4145H, AISI 4145H Mod, AISI 4340, AISI 4140-4142 and Non-magnetic material. All connections are phosphate-coated or copper plated to improve resistance to corrosion. Crossover subs come in three basic types: A Pin (male) * Box (female); B Pin (male) * Pin (male); C Box (female) * Box (female)

Crossover Sub for Drill Pipe

Nominal size OD (mm) Chamfer diameter (mm) ID (mm) Thread
60.3 85.7 83 44.5 NC26 (2 3/8 IF)
70.3 104.8 100.4 54 NC31 (2 7/8IF)
50.8
111.1 41.3
88.9 120.7 116.3 68.3 NC38 (3 1/2IF)
65.1
61.9
54
101.6 152.4 145 82.6 NC46 (4IF)
76.2
114.3 161.9 150.4 95.3 NC50 (4 1/2IF)
88.9
92.1
168.3 76.2
120.7 161.9 150.4 95.3
88.9
165.1 82.6
76.2
168.3 69.9
139.7 177.8 170.7 101.6 5 1/2FH
95.3
184.2 88.9
190.5 180.4 76.2

Crossover Sub for Drill Collar

Nominal Size (mm) Chamfer diameter (mm) ID (mm) Thread
79.4 76.2 31.8 NC23
88.9 82.9 38.1 NC26 (2 3/8IF)
104.8 100.4 50.8 NC31 (2 7/8IF)
120.7 114.7 NC35
120.7 121 57.2 NC38 (3 1/2IF)
152.4 144.5 71.4 NC44
158.8 149.2 57.2
150 71.4 NC46 (4IF)
165.1 154.8 57.2
71.4
171.4 159.5 57.2
177.8 164.7 71.4 NC50 (4 1/2IF)
184.2 169.5
196.8 185.3
NC56
6 5/8REG
203.2 190.1 NC56
6 5/8REG
209.6 195.7
228.6 212.7 NC61
241.3 223.8 76.2 7 5/8REG

Crossover Sub for Connecting with Kelly and Swivel

The upper and lower end of Kelly tap The lower end of Kelly tap ID (mm) Kelly tap type

Kelly tap Specifications
OD (mm) Chamfer diameter (mm) Thread OD (mm) Chamfer diameter (mm) Thread
Standard Optional Standard Optional Standard Optional
196.8 146 186.1 134.5 6 5/8 REG 4 1/2 REG 85.7 82.9 NC26 (2-3/8IF) 31.8 Square Kelly tap 2 1/2
104.8 100.4 NC31 (2-7/8IF) 44.4 3 1/2
120.6 116.3 NC38 (3-1/2IF) 57.2 3 1/2
158.8 145.3 NC46 (4IF) 71.4 4 1/2
161.9 150.4 NC50 (4-1/2IF)
177.8 170.7 5-1/2FH 82.6 5 1/2
171 NC56
196.8 146 186.1 134.5 6 5/8 REG 4 1/2 REG 85.7 82.9 NC26 (2-3/8IF) 38.1 Hexagonal Kelly tap 3
104.8 100.4 NC31 (2-7/8IF) 44.4 3 1/2
120.6 116.3 NC38 (3-1/2IF) 57.2 4 1/4
158.8 145.3 NC46 (4IF) 76.2 5 1/4
161.9 150.4 NC50 (4-1/2IF) 82.6
177.8 170.7 5-1/2FH 88.9 5
171 NC56
