Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure
Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure
Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure
Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure
Specifications
Brand Name :
Dowellcrane
Model Number :
LX
Certification :
SGS IOS CE
Place of Origin :
China (Mainland)
MOQ :
1
Price :
USD5000-50000set
Supply Ability :
4000sets per year
Delivery Time :
35days
Packaging Details :
Packed by plywood crate or plastic woven cloth
Product name :
Monorail Hanger Overhead Crane Equipment Supplier
Warranty :
2 Years
Span :
7.5-22.5m
Condition :
New
After-sales service provided :
Free spare parts
Max. lifting height :
6m~30m
Rated lifting moment :
Different
Max. lifting load :
20t
Application :
warehouse and so on
Power supply :
3 Phase AC 380V 50HZ
Description

Monorail Hanger Overhead Crane Equipment Supplier

Product Description:

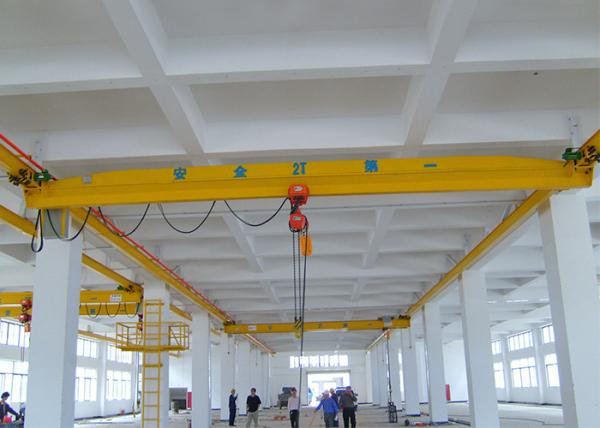

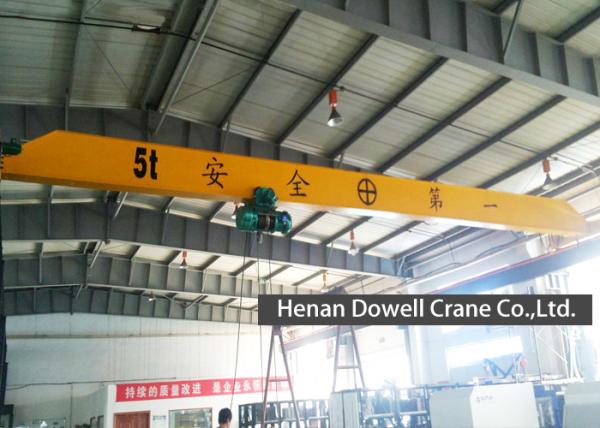

Monorail Hanger Overhead Crane Equipment is LX type electric single-girder suspension bridge crane. It is suitable for general workplaces with an ambient temperature of -25℃～+40℃, and the operation mode is ground operation. The main beam of the crane is generally an I-beam, the hoisting mechanism is an electric hoist, and the operating mechanism adopts a three-in-one reducer, which has the characteristics of simple structure, light weight and low cost. The crane runs on the I-beam on the roof truss of the workshop by means of a large wheel set, which is different from other cranes. The suspension crane can be directly installed on the I-beam of the roof steel structure of the existing factory building, so there is no need to install the bearing beam and the crane rail, so that the customer can reduce the cost and use the entire factory area for production.

Product Drawing:

Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure

Product Parameters:

LX Type Electric Single-girder Underslung Crane 5t
Span S(m) 3 4 5 6 7 8 9 10
Lifting height m 9 9 9 9 9 9 9 9
Lifting speed m/min 8 8 8 8 8 8 8 8
Trolley speed m/min 20 20 20 20 20 20 20 20
Crane speed m/min 20 20 20 20 20 20 20 20
Lifting motor kw 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5
Trolley motor kw 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Total weight t 1.28 1.36 1.44 1.52 1.60 1.92 2.02 2.12
Max wheel load t 2.92 2.94 2.96 2.99 3.01 3.10 3.12 3.15
Track I36a I36a I36a I36a I36a I36a I36a I36a
Main dimension mm 3 4 5 6 7 8 9 10
Girder edge to hook h 1320 1320 1320 1320 1320 1320 1320 1320
Wheel base W 1000 1000 1000 1000 1000 1500 1500 1500
Crane width B 1500 1500 1500 1500 1500 2000 2000 2000
Hook left limitation S1 302 302 302 302 302 302 302 302
Hook right limitation S2 170 170 170 170 170 170 170 170
Left cantilever L1 750 750 750 750 750 1000 1000 1000
Right cantilever L2 750 750 750 750 750 1000 1000 1000
Note: Control mode for ground operation

Product Features:

  • Lightweight structure, excellent performance, advanced design concept, effectively improve space utilization.
  • Made of high quality steel, durable and corrosion resistant.
  • Complete standard configuration, stable running, fast positioning, stable and safe operation.
  • Simple maintenance, low installation and maintenance costs, and long service life

About Us

Monorail Hanger Overhead Bridge Crane Equipment 30m Lightweight Structure

Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.

  • Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors
  • Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.

FAQ:

Q1: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q2: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q3: What's your warranty terms?
A: We supply 24 months warranty time.
Q4: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
