BMH Type Single Girder Semi Portal Crane Electric Hoist 5 Ton IP54 Protection
BMH Type Single Girder Semi Portal Crane Electric Hoist 5 Ton IP54 Protection
Specifications
Brand Name :
Dowellcrane
Model Number :
BMH
Certification :
ISO CE BV CCC GOST
Place of Origin :
China (Mainland)
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
10000 Sets per Year
Delivery Time :
30 days
Packaging Details :
Main body packaged by high quality water-proof plastic woven cloths; spare parts are packed in high quality plywood box.
Lifting speed :
5-15M/MIN
Trolley running speed :
20-40M/MIN
Crane running speed :
30-50M/MIN
Control method :
cabin control/wire rope remote control
Protection grade :
IP54
Power supply :
3 phase 380V 50hz or request
Description

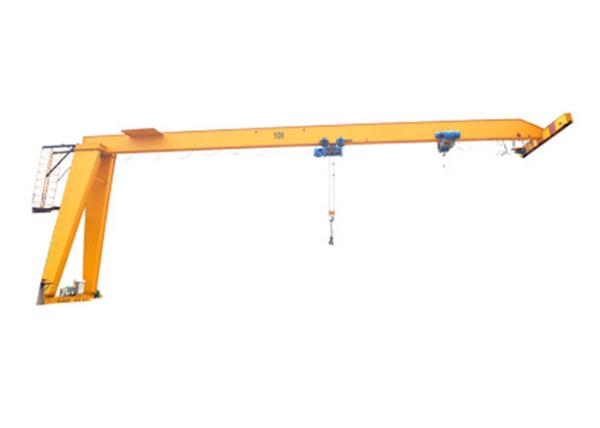

5 Ton BMH Type Single Girder Semi Electric Hoist Gantry Crane

Product Description

1. The BMH electric hoist half-gantry crane is used with CD1, MD1 and other types of electric hoist. It is a small and medium-sized crane with rail operation.
2. Suitable for lifting weight 1-16 tons, suitable for span 5-20 meters, working environment -20 ℃-+ 40 ℃.
3. This product is a general-purpose crane, mostly used for material handling in the machining workshop.
4. This product is mostly in the form of ground control or remote control. The special reducer for the lower beam can make the working space inside the crane larger.

Product Parameters

Crane model BMH
Lifting weight 3t-20t
Span 6m-30m
Lifting height 3m-30m
Lifting speed 3.5m-8m / min
Working level A3-A4
Control mode ground control + wireless remote control

Serive

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sale service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.

3) After-sale service:

14 months warranty from the date of B/L

One year quick-wear parts for free

Professional technicians provide installation, commissioning services

Technical advisory for any time

Parts Of Crane

BMH Type Single Girder Semi Portal Crane Electric Hoist 5 Ton IP54 Protection
