40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
40 Foot Handling Container Gantry Crane Capacity RMG Type 34m
Specifications
Brand Name :
Dowellcrane
Model Number :
RMG
Place of Origin :
china
MOQ :
1 set
Price :
100000 usd
Payment Terms :
L/C, T/T
Supply Ability :
5000/year
Delivery Time :
90 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements.
Certification :
CE ISO
Product name :
Handling Container Gantry Crane
Max. Lifting Height: :
20M
Lift height :
6m 9m 12m 18m
Span: :
34m
Color :
Customized
Girder Type :
Double Girder Box
Motor: :
ABS
Power Source :
User Requirments
Usage :
Matrtials Handling
Advantage :
Flexible Turning
Description

40 Foot Handling Container Gantry Crane Capacity RMG Type 34m

Production Introduce:

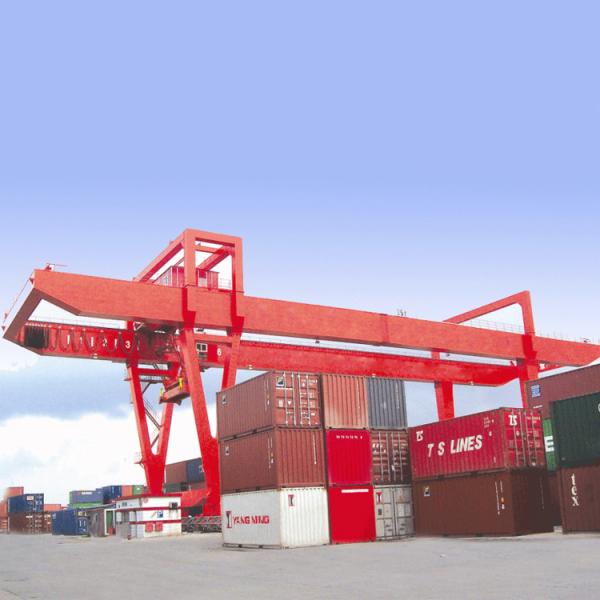

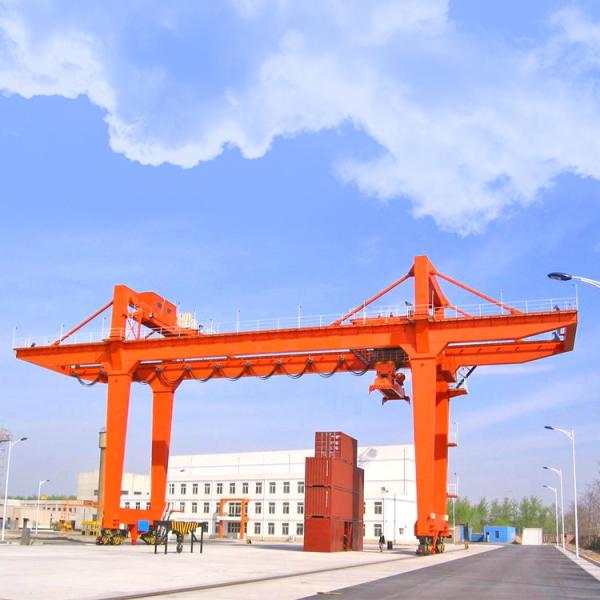

Rail mounted container crane is one kind of heavy duty gantry crane, it is widely used in railway freight yard and coastal port
This kind of Crane is available for general service, such as loading, unloading, lifting and transferring work in outdoor yards of the factory or on railways, also works as container crane matching special hang parts. The capacity is from 30.5 to 320 tons, span is 35m, the working class is medium & heavy grade.

Capacity
Under spreader 35tons
Duty Class
A6~A8
Span(rail to rail center)
30m or as required
Material handling
20’ 40’ 45’container
Cantilevers
According to your demand, but not more than 1/3 of span
Lifting height
16m or as required
Spreader
20' or 40' or 45’ telescopic spreader
Lifting speed(m/min)
0~20
Cross travelling speed(m/min)
0~30
Long travelling speed(m/min)
0~40
Power source
AC 380V 50HZ 3Ph (or other standard)
Control model
Cabin
Max.wheel pressure(KN)
290
Rail model
QU80

1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
