20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder
20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder
20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder
20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder
Specifications
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per year
Delivery Time :
45 workdays
Packaging Details :
Export standard packaging
Keywords :
Workshop Overhead Crane
Span :
15m
Feature :
Large Lifting Capacity
Max. lifting height :
9m,12m,6m
Max. lifting load :
20/5 ton
main girder structure :
Box Girder
Application :
modern industrial production
Working duty :
A5 A6 A7
Description

20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder

Introduction:

Double girder bridge crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting transportation. Therefore, the double girder bridge crane is widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals, logistics turnover and other departments and places.

Technical Parameter:

Cap (t) 5/ 10
Span (m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5

Main

Dimensions

(mm)

 H 1763/1800
H1 765
H2 24 126 226 376 526 676 826 976
H3 2396 2546 2646 2796 2946 3096 3246 3396
H4 71-552
K 1400-2000
W 3400 3550 5000
B 5054 5204 5948
b 230
Max. Wheel Load (KN) 72-152
Total Power (KW) 10-15.5
Lifting Height (m) 16
Hoisting Speed (m/min) 5

20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder

Advantage:

1. Reasonable structure and beautiful appearance

High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise

2. Excellent performance and large lifting capacity

Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance

3. Simple operation and land saving

The height above the track surface is small, occupying small space, saving space

4. Own factory, supporting installation

Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty

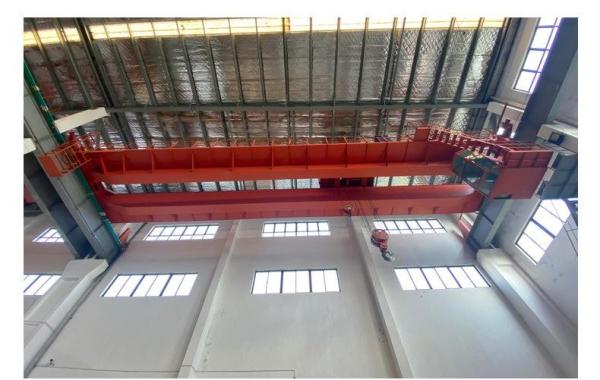

Photos:

20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder

About products: In order to better serve you, please tell us the following data:

1. Bearing capacity

2. Span (track center distance)

3. Lifting height (from the hook center to the ground)

4. Power supply: voltage

5. Working environment: description of lifting cargo, service environment and temperature

6. If the workshop drawings can be provided, it will be a better support.
