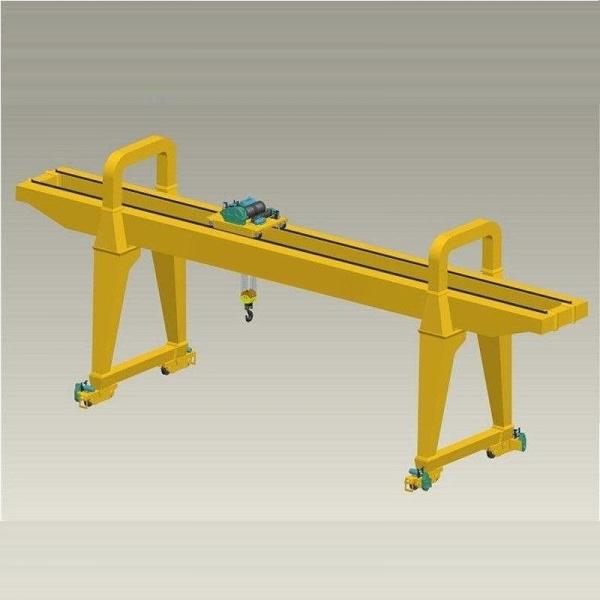

Versatile 50T Double Girder Gantry Crane Widely Used For Ports
Versatile 50T Double Girder Gantry Crane Widely Used For Ports
Versatile 50T Double Girder Gantry Crane Widely Used For Ports
Versatile 50T Double Girder Gantry Crane Widely Used For Ports
Specifications
Certification :
CE
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Export standard packaging
Delivery Time :
45 workdays
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per year
Keywords :
Double Girder Gantry Crane
Span :
5-40m or on request
Max. lifting height :
9m,12m,6m
Lifting load :
16 / 3.2T
Power source :
3 phase 380V 50hz or accord your requirements
Crane feature :
Easy Operated Girder Bridge Crane
Application :
Container Handling In Ports
Description

Versatile 50T Double Girder Gantry Crane Widely Used For Ports

Description:

The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane of the same lifting capacity, and the cost is also higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, a box structure is used.

Technical Parameter:

Lifting Capacity t 5 10 16/3.2 20/5 32/5 50/10
Working Duty ISO A3-A8
Span m 7-35, customized
Lifting Height Main hook m 10 11 10 11 10 11 10 11 10 11 10 12
Aux. hook 10.275,11.275 10.446,11.446 10.73 11.73 10.918 12.918
Speed Lifting Main m/min 11.3 8.5 7.9 7.2 7.5 5.9
Aux. 14.6 15.4 15.4 10.4
Trolley traveling 37.3 35.6 36.6 37 36
Crane traveling 37.3 39.7 40.1 39.7 39.7 37.3 39.7 39.4 38.5
Recommended Tail 43kg/m 43kg/m or QU70
Power Supply 3-Phase 380V 50HZ, or as clients' requirement


Product Configuration:

1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Brand: CHINT SIEMENS Schneider
8.Conductor power supply: Cable Reel or busbar.

How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined

Photo:

Versatile 50T Double Girder Gantry Crane Widely Used For Ports
