6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V
Specifications
Brand Name :
Xiangteng
Model Number :
XT-MZAZ-RD-15W
Certification :
BIS CE RoHS
Place of Origin :
China
MOQ :
2000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Dimension :
6.5 inch
Lighting Surge :
1.5KV
LED Driver :
Non Isolated
Power Factor :
0.9/0.5
Power :
15 watt
Shape :
Circular
Description

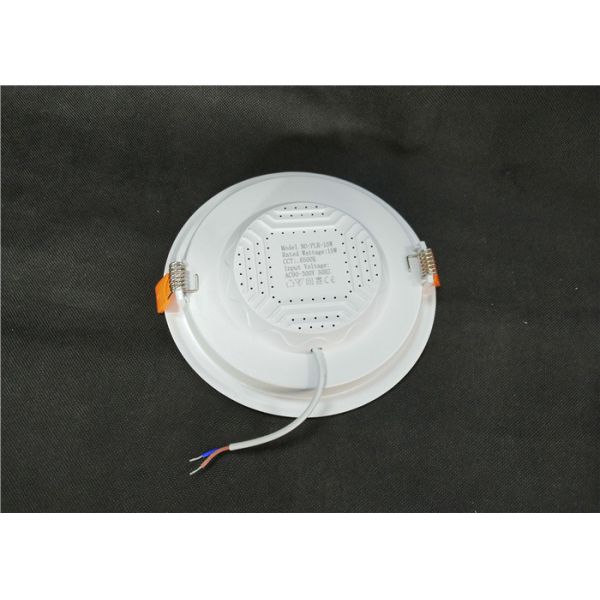

6.5 Inch Round LED Recessed PC Integrated Downlight 15W Surface Panel AC90-265V
Overview
This 6.5 inch 15 watt Round LED flat panel with built in driver, make it integrated unit. Backl-lit design , super bright more than 1500 lumens, perfect lighting fixture to replace traditional downlight.
With the poly carbonate switch bracket, It can be also used as surface panel light. It is Perfect lighting replacement to the exist damaged surface panel light.
High PF 0.9 (flicker and non flicker designs) and low PF0.5, to meet different consumers requirements.
Work voltage: AC90-265V and AC170-265V, to light all over the world
Amazing Features
• Lighting surge 1.5KV
• Integrated design, with built-in driver , to protect the unit from insects and dust
• PC housings and diffusor, make it high grade and long service life
• Bottom lighting, high luminous efficiency more than 100lm/w
• 2 Power Factor for opitional: PF0.5 and PF0.9
• For high PF0.9 driver, flicker and non flicker designs for choice
• Work voltage: AC90-265V / AC170-265V
• 2 years warranty
Product Specifications

Shape

Watt

Dimmension
(mm)

Cut out
(mm)

Voltage

Driver

PF

Luminous Efficiency

Housing

CCT

Round

 9W ø115*40 ø100

170-265V

Non isolated

0.5

100lm/w

PC

3000-6500K
15W ø165*40 ø152
22W ø220*40 ø210

Round

 9W ø115*40 ø100

90-265V

Non isolated
(Flicker,
Surge:1.5KV)

0.9

100lm/w

PC

3000-6500K
15W ø165*40 ø152
22W ø220*40 ø210

Round

 9W ø115*40 ø100

90-265V

Non isolated
(Non Flicker, Surge:1.5KV)

0.9

100lm/w

PC

3000-6500K
15W ø165*40 ø152
22W ø220*40 ø210

Square

 9W 115*115*40 100*100

170-265V

Non isolated

0.5

100lm/w

PC

3000-6500K
15W 165*165*40 152*152
22W 220*220*40 210*210

Square

 9W 115*115*40 100*100

90-265V

Non isolated
(Flicker,
Surge: 1.5KV)

0.9

100lm/w

PC

3000-6500K
15W 165*165*40 152*152
22W 220*220*40 210*210

Square

 9W 115*115*40 100*100

90-265V

Non isolated
(Non Flicker, Surge:1.5KV)

0.9

100lm/w

PC

3000-6500K
15W 165*165*40 152*152
22W 220*220*40 210*210

6.5 Inch LED Recessed Downlight / LED Surface Panel Light 15w AC90-265V

Applicable For

• Restaurant , Hotel , Supermarket
• Showroom , Meeting rooms
• Factories , Offices
• Commercial complexes , exhibition hall
• School, Colleges , Universities
• Hospital , Classrooms , Underground Park
• Places where there is damaged panels / downlight to replace
Cautions
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
