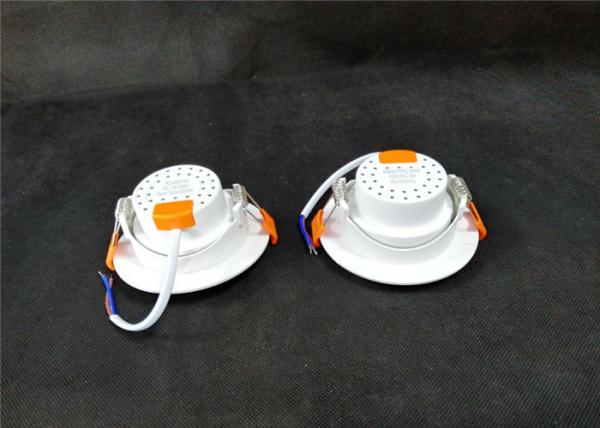

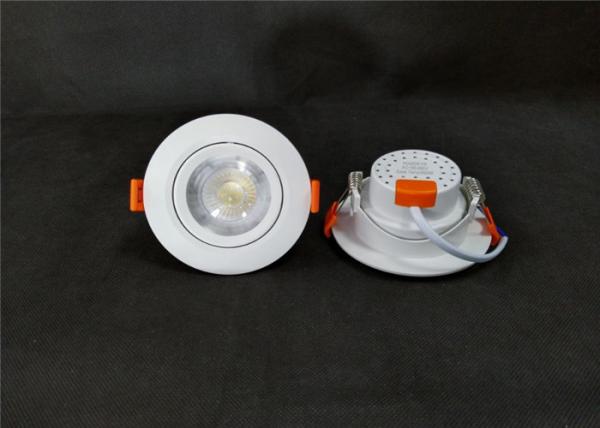

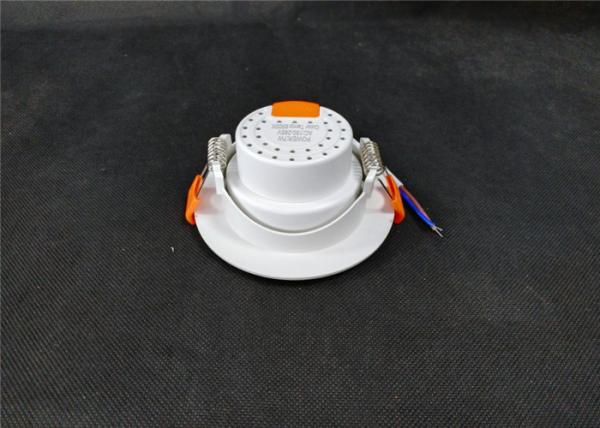

7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
7 Watt Movable SMD 2835 LED Spot Downlight White Plastic + Aluminium Housings
Specifications
Brand Name :
XENTER
Model Number :
XT-SMD-7-RD
Certification :
BIS CE RoHs
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Power Consumption :
7 watt
Color temperature :
3000-3500K / 6000-6500K
Driver Type :
non isolated
Light Size :
Ø90mm*H42mm
Cut Hole: :
Ø75mm
Housing Materials :
plastic with aluminium (inside)
Light Movable :
Yes
Light Source :
SMD2835 / 8pcs
Voltage :
AC100-265V
Lumens :
630lm
Description


7W round movable SMD2835 downlight white plastich+aluminium housings


Benefits for your projects

The SMD Downlights are highly efficient replacements for CFL downlights . The modern LED luminaires provide energy savings up to 60 % compared the conventional solutions.

The can be installed quick and easy also with their advanced flexibility due to an included external driver.

These LED downlights have an plastic+aluminum housing and a high-quality PMMA diffuser , which makde it release heat effectively.

They come with 2 years guarantee.


Specification for SMD downlight

Item No: XT-SMD-7-RD
Item Name: SMD Downlight
Lamp Power: 7W
LED Driver Non isolated
Dimension(mm): Φ90*42mm
Cut-out (mm): Φ75mm
Housing Material: plastic+aluminium (inside) housings
Color Temperature: 3000-3500K / 6000-6500K
Luminous Flux: 630lm
Input Voltage: AC100-265V
LED Type: 2835 SMD /8pcs
Color Rendering Index(CRI): Ra>70
Power Factor(PF): >0.5
Beam Angle: 36º
Working Lifetime(Hour) : >40000 hrs
Luminous Efficiency: 90lm/w
Warranty: 2 years



SMD downlight packing information

ShapeWattPCS/CTNGW/CTN
(kgs)		CTN Size
(cm)
Round3W1006.0044*25.5*34
5W1008.0052*27.5*39
7W10010.0052*27.5*39
9W609.0052*28*37
12W6012.5061*33*44
Square3W1006.0044*25.5*34
5W1008.0052*27.5*39
7W10010.0052*27.5*39
9W609.0052*28*37
12W6012.5061*33*44




Applications:

1. Public rooms and areas
2. Stairways , corridors , foyers
3. Replacement of traditional halogen lamp or incandescent lamp
4. Medical lighting
5. Residential lighting:bedroom ,study ,kitchen ,bathroom ,sitting room , ceiling lighting
6. Commercial lighting :shop , exhibition , hotel lobby ,office ,display case lighting ,under cabinet lighting , art lighting ,etc
