4 Water Spray Dental Push Button Handpiece Fiber Optic Coupling
4 Water Spray Dental Push Button Handpiece Fiber Optic Coupling
4 Water Spray Dental Push Button Handpiece Fiber Optic Coupling
4 Water Spray Dental Push Button Handpiece Fiber Optic Coupling
Specifications
Brand Name :
DORIT
Model Number :
DR-185
Certification :
ISO, CE, FDA
Place of Origin :
China
MOQ :
2piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, D/P, Western Union, MoneyGram,Paypal
Supply Ability :
2000pcs/ week
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product name :
4 Water Spray Dental High Speed Handpiece Fiber Optic Coupling
Cartridge :
Chinese ceramic bearing cartridges
Connection :
6 holes quick coupling
Chuck type :
push button type
Spray :
Four spray
Application :
Dentistry
Head Diameter :
Φ12.5mm(torque)
Description

4 Water Spray Dental High Speed Handpiece Fiber Optic Coupling

Dental Handpiece Fiber Optic Advantage

1. German ceramic ball bearing; open style cartridge
2. Four spray, effective cooling for bur and treating contact surface
3. Push button type to change bur, easy and convenient
4. Sirona type 6 holes ISO Standard quick coupling, easy to exchange handpiece for dentist and improve working efficiency
5. Fiber optic light source, Japan imported LED lamp, endurance of sterilization under high temperature and high pressure
6. sterilized in 135℃ to avoid cross-infection.
7. Streamlined design, comfortable for hand feeling, easy to clean

Dental Handpiece Fiber Optic Technical Data

Product name Dental handpeice fiber optic

Type

Four spray

3 way spray 3 air

2 hole / 4 hole

2 hole / 4 hole

2 hole / 4 hole

Model

Standard, torque

LED Type

Fiber Optic
Chuck type Push button
Noise ≤60dB
Head Diameter
Φ12.5mm(torque)
Bur applicable
Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length)
Rotation speed
300,000~350,000rpm(Torque); 350,000~420,000rpm(Standard)
Head height 13.1mm(Torque)
Power 25W(torque)
Light brightness 25500lux

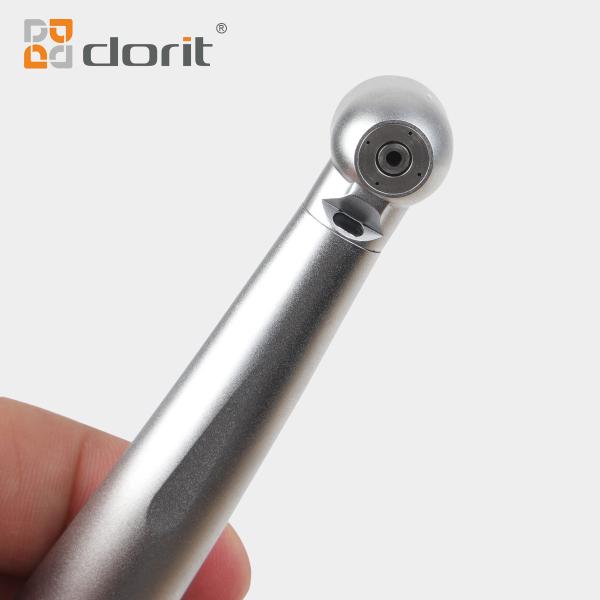

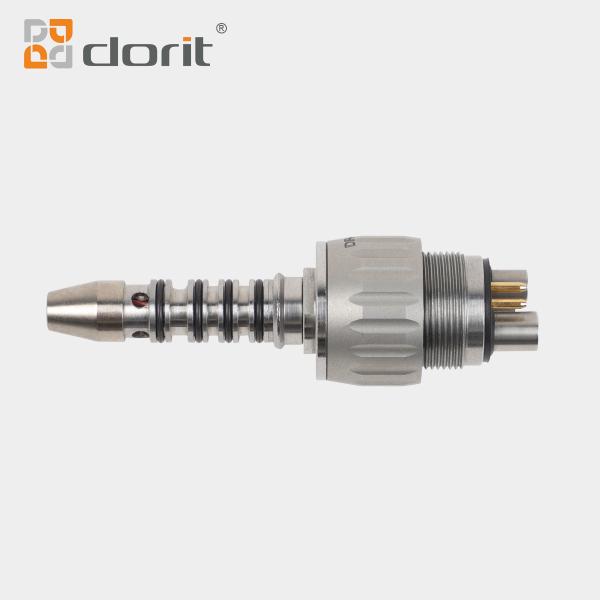

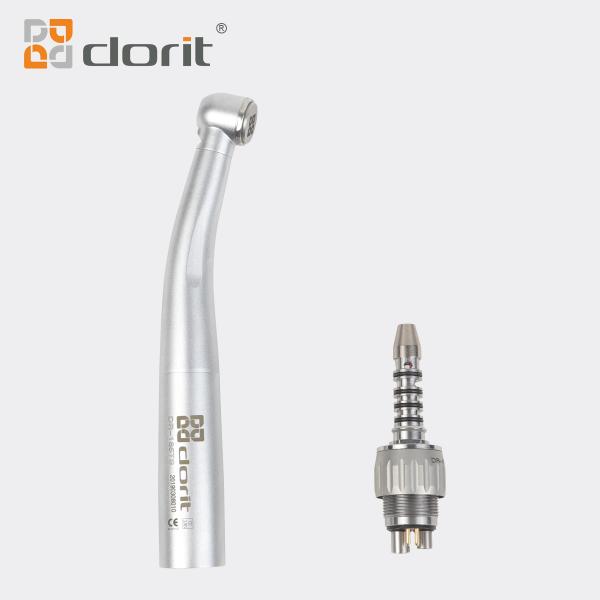

Dental Handpiece Fiber Optic image

4 Water Spray Dental Push Button Handpiece Fiber Optic Coupling

After each patient use , maintenance should be done as follows:

1. First remove the diamond burs , and clean up all the teeth on dental handpieces precipitate

2. Use a metal needle to clean the spray holes and fumaroles

Note: The spray holes and diamond burs into 40 -degree angle , fumaroles and diamond burs to a 30 degree angle

3. Place the clean lubricating oil is sprayed into the axial hole 1-2 seconds ( diamond burs is plugged holes )

4. In the bottom of the handpiece were ( with / without quick connector ) two kinds of styling , make the right amount of lubricant is injected into the bottom

5. The handpiece with quick connector combination ( first determine the water switch is turned off )

6. Replace the diamond burs , surrounded by white silk cloth handpiece head ( make sure the needle does not touch the diamond burs and white gauze , so as not to tie )

7. pedal depressed for about 20 seconds , look at whether there is in white gauze on any stain. If there are stains on the white gauze , again, add oil , starting from item 4 continued routine maintenance , know that white gauze until no stain

8. Finally, no more than 135 degrees Celsius temperature and high pressure sterilization
