High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling
Specifications
Brand Name :
DORIT
Model Number :
DR-162N
Certification :
ISO CE FDA
Place of Origin :
China
MOQ :
2pcs
Price :
USD80-169/pc
Payment Terms :
T/T, L/C, Western Union, Paypal
Delivery Time :
5-7 working days
Packaging Details :
Carton
Product name :
Dental High speed led light handpiece
Light source :
air driven light
Cartridge :
German materials
Coupling :
NSK type 4 hole coupling
Speed :
300,000-420,000rpm
Material :
High Chomium
Description

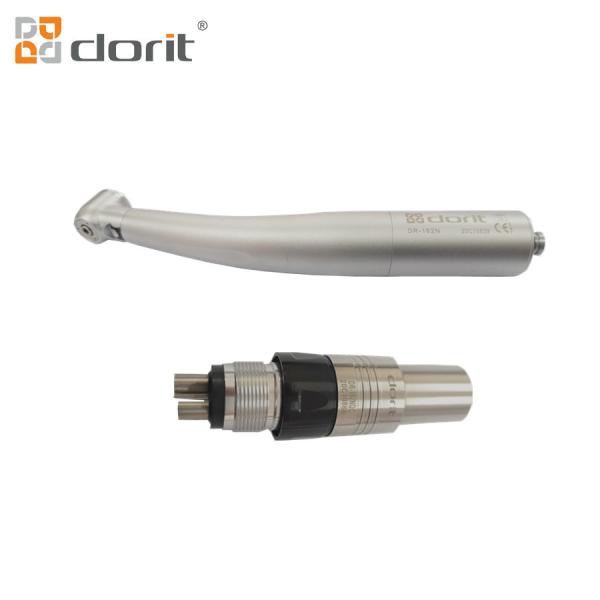

DORIT Dental High speed led light handpiece with 4 hole NSK type coupling

LED Airotor handpiece 4 hole coupling

Features:

1. German ceramic ball bearing; open style cartridge.

2. Triple spray, effective cooling for bur and treating contact surface.

3. NSK type 4 holes ISO Standard quick coupling

4. E-generator light by air, self illumination.

5. Streamlined design, comfortable for hand feeling, easy to clean.

LED Airotor handpiece 4 hole coupling Technical data:

Drive air pressure 0.25-0.3Mpa
Water pressure 0.2Mpa
Water pressure 198Kpa(2kg)
Light brightness 25500lux
Power 22W;
Rotation speed 350,000~420,000rpm
Head height 13.0mm
Head diameter 11mm
Chuck type Push button
Clamping force 22N~34N
Torque force 0.1N·cm
Bur Applicable Φ1.59mm-Φ1.60mm*21mm-23mm(diameter*length)
Noise ≤60DB

Detailed photo:

High Chomium NSK Airotor Handpiece Push Button 4 Hole CouplingHigh Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling

High Chomium NSK Airotor Handpiece Push Button 4 Hole Coupling

Our services :
1. The products is warranted for one year from the date of effective delivery(except for artificial damage)
2. Problems caused by the following cases are not include in scope of quality warranty:
a. Non-observance of use and maintenance instruction, tumbles or beats;
b. Improper storing;
c. Action of natural agents and technical assistance carried out by non-authorized personnel.
3. Quality warranty will be stopped under these following cases:
a. Alterations in the product;
b. Use of improper fittings;
c. Technical assistance carried out by Dorit non-authorized person.
4. This warranty is valid in the country where the sales documents were permitted.
