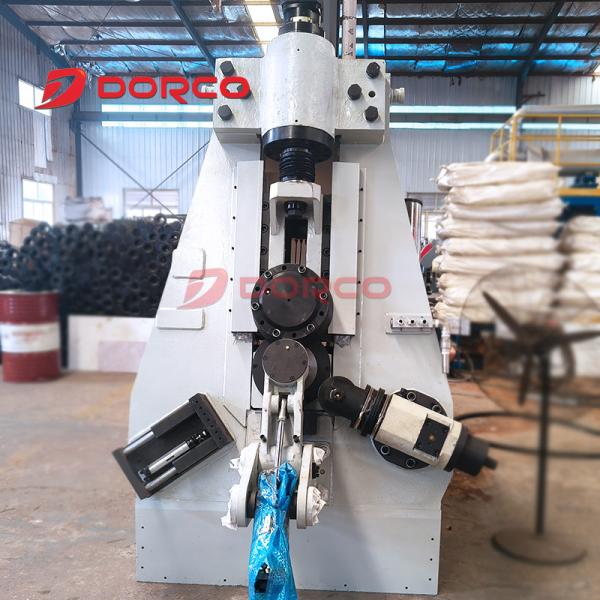

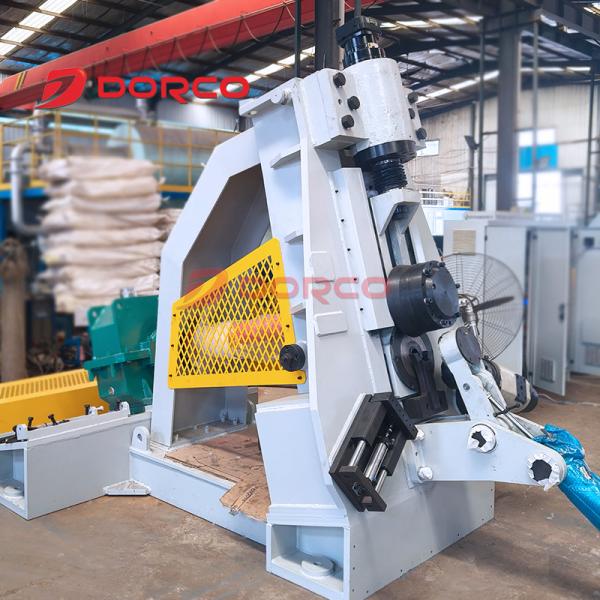

D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
Specifications
Brand Name :
DORCO
Model Number :
D51Y
Place Of Origin :
China
MOQ :
1 Set
Price :
25000 - 147000 USD Per Set
Packaging Details :
After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Time :
45-75 Working Days
Payment Terms :
L/C,T/T
rolled material :
Can Roll Various Metal Materials
Ring rolling height :
40 - 300mm
model :
Multiple Specifications To Choose From
Main Transmission Mode :
Hydraulic / Pneumatic Device
Warranty period :
1 Year
Power Source :
Electric
Description

Product Description:

The D51Y vertical ring rolling machine is a high-performance CNC rolling equipment designed to meet the efficient and high-precision production needs of metal rings in harsh industrial environments.
Core advantages:
Wide material adaptability: easy rolling of steel, aluminum, and other common metal materials, with excellent versatility.
Flexible size range: The rolling height of the ring component can reach 130 mm, meeting the production needs of precision small ring components.
Optional specifications and configurations: Multiple optional specifications and models are provided, and users can choose the optimal configuration based on their own production capacity, ring size, and process requirements to ensure maximum production efficiency and output.
Excellent rigidity, able to withstand high-intensity pressure, ensuring consistent machining accuracy.
Sensitive operation, easy for operators to quickly adjust according to their needs.
The structural design adopts self-developed new accessories, with a rectangular cross-section for scientific force distribution, high guiding accuracy, extended equipment life, and easier operation.
Wide adjustable range, suitable for various types of ring processing.
Before each device leaves the factory, our company strictly inspects and debugs it to ensure that it is delivered to customers in the best condition, providing a solid guarantee for production.


Technical Parameters:

DRC-D51Y(H)

160

250

350

450

550

800

1000

1200

1300

DRC-D51Y(P)

160

250

350

/

/

/

/

/

/

Nominal outer diameter of grinding ring(mm)

160

250

350

450

550

800

1000

1200

1300

Range of outer diameter of rolling ring(mm)

55-160

80-250

180-350

250-500

350-600

400-800

500-1000

600-1200

600-1300

Ring rolling height(mm)

40

130

160

230

300

200

200

200

300

Radial rolling force(KN)

50

150

300

500

550

550

800

800

800

Linear rolling speed(m/s)

2.5

1.8

1.5

1.5

1.3

1.37

1.3

1.3

1.3

Cylinder stroke(mm)

50

100

110

130

150

200

250

250

350



Applications:

Vertical ring rolling machine is an advanced equipment for efficient and precise manufacturing of high-performance annular forgings. It is widely used in the production of bearings, gears, flanges (especially flat welding and large diameter flanges), thin-walled cylindrical parts, as well as various connecting and transmission components. Its strong material adaptability (covering high-temperature alloy steel, bearing steel, carbon steel, copper, aluminum, etc.) and excellent process advantages (near net forming, excellent performance, high precision, high efficiency) make it an indispensable key equipment in many industries such as modern machinery manufacturing, automotive, wind power, aerospace, shipbuilding, petrochemicals, engineering machinery, etc., perfectly serving the application needs you described.

Support and Services:


We provide comprehensive service support from pre project consultation to equipment installation, debugging, and maintenance in the later stages. In the implementation process of customized solutions, we maintain close communication with clients, promptly solve problems encountered, and ensure the smooth progress of the project.
