Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
Specifications
Brand Name :
STATEMED
Model Number :
STT7-BWU33
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union,Alibaba Trade Assurance
Supply Ability :
300 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Name :
Hospital equipment&cheap portable ultrasound machine
Display mode :
B;B/B;4B;B +M;M
Display size :
10.4inch LED displayer
Dynamic range :
0~120db adjustable
Focus position :
Dynamic electron focusing
body marks :
Gray scale
Permanent storage :
128 images
Output interface :
USB port
Description

Hospital equipment&cheap portable ultrasound machine

1.Product Show:

Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer

I Specification:

Model STT-30 Notebook LED Digital Ultrasound Scanner
Display mode B;B/B;4B;B +M;M
Display size 10.4inch LED displayer
Image multiplying factor 3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom: Magnify 2 times of real time image
Dynamic range 0~120db adjustable
Focus position Dynamic electron focusing
Image proessing 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Permanent storage 128 images
Output interface USB port
Standard configuration Ultrasound machine with 3.5Mhz convex array probe and power adapter

II.Standard Configuration:

1.One host machine

2.One convex array probe:F=3.5MHZ

3.One power adapter

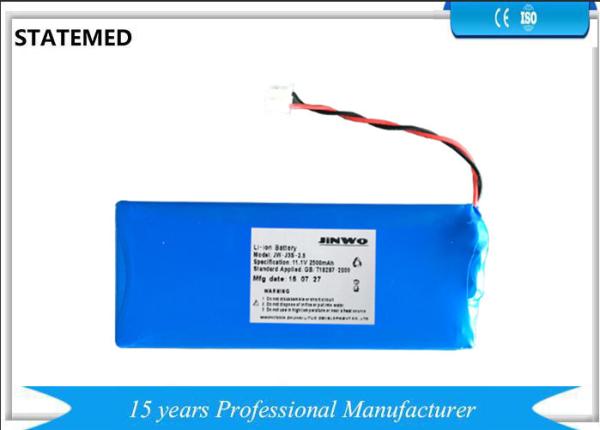

4.11.1 V 2500MAH Li battery

5.USB port

Other parameters

Designation Performance
Displayer 10.4 inch LCD color display
Perimeter and area measured deviation (%) ≤±20%
The battery pack works continuously ≥1 hour
Input power AC220V±22V,1.5A
Gross weight about 3.62 kg
Host weight about 2.67 kg
Host appearance size 300×245×60 (length × width × height)(mm3)
The outer packing size 365×255×70 (length × width × height)(mm3)

2. Certificate:

Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer3. 3. Factory:

Hospital Equipment Portable Ultrasound Machine With 10.4 Inch LED Displayer
