LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ
Specifications
Brand Name :
STATEMED
Model Number :
STT7-BWU35
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union, Alibaba Trade Assurance
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Product name :
LED Touch Screen Handheld Ultrasound
Gain adjusts :
12.1-inch LED(1024*768)
Display language :
English / Chinese / Spanish / Portuguese
Transducer frequency :
2.0-15.0MHZ
Scanning depth :
15mm to 230mm
Image :
High definition images
Dynamic Range :
36dB-102dB
Body mark :
126 types
Description

Many kinds of ultrasound scanners with high definition images in our shop available for QUICK SHIPPING ,SPECIAL PRICE AND NICE QUALITY are waiting for you.

[ FACTORY DIRECT PRICE - QUICK SHIPPING - NICE QUALITY]

LED Touch Screen Handheld Ultrasound

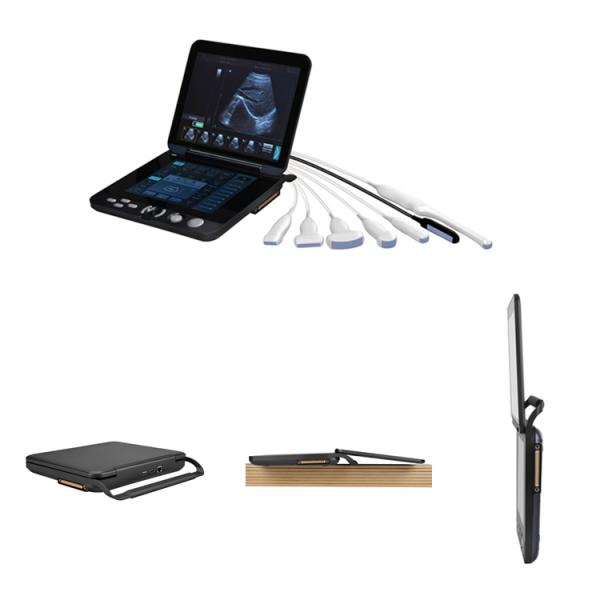

1. PHOTOS:

LED Touch Screen Handheld Portable Ultrasound Scanner 2.0-15.0MHZ

2. Product Specification:

Technical Specifications
General
Imaging mode B,B+B,4B,B+M,M
Gray scale 256
Display 12.1-inch LED(1024*768)
Display language English / Chinese / Spanish / Portuguese
Transducer frequency 2.0-15.0MHZ
System Windows 10 System
User interface 9.7-inch touch screen
Scanning angle 150 degrees
Scanning depth 15mm to 230mm
Application Abdominal, Obstetrical, Gyneclogical, Cardiac, Small parts, Urological, Vascular, Orthopedics, MSK
Imaging Processing
Power:80%-100%
Dynamic Range:36dB-102dB
Focus Number:5
Map:16 (cromo color:7)
Frame Average: 0-7(0,1,2,3,4,5,6,7)
Image Enhancement:0-4(0,1,2,3,4)
AQ Sonic:0-8(0,1,2,3,4,5,6,7,8)
E-Crystal:0-8(0,1,2,3,4,5,6,7,8)
Compound imaging
Trapezoid imaging
Multiple Beam Formation
Lines Density:Low, Medium, Standard,High
Intelligent workflow
8-Segment TGC,can adjust each segment at once time
One-key image optimization
Full patient database solutions
Setting
Zoom X0.5,X 0.75, X1, X1.5, X2, X2.5, X3,X4, X6
Panoramic zoom in real-time and freeze
Guidance 30°, 45°, 60°
Body mark 126 types
Storage/Review
On hard disk or USB can be temporarily saving in cine memory
Single-frame image formats:BMP
Multi-frame image formats:AVI
Cine memory capacity(Max)
B Mode:1024 frames
M Mode:10.5s
Measurement & calculations
B-mode:
General: Distance Ellipe Trace Angle Meas
Ratio Meas Area Ratio 3DVS
Obstetric: AC Trace AC Ellipe BPD CRL
GS HC Trace HC Ellipe HL
TL UL ATD TTD
BOD Cereb AFI Input BBT
Grading
Gynaecology: Uterus L Uterus VOL Cervix L Cervix VOL
L Foll VOL R Ovar VOL L Ovar VOL R Renal VOL
Endom thick
Organ: Hip Angle Thyroid R. Thyroid L.
Urinary: Prostate Puv Kidney Bladder
Testis Input PSA
M-mode:
General: Distance T.V Heart Rate STENOSIS A/B Ratio
Cardiology: Aorta Flux LV Mass LV Cube LV Teich
LV PW Mitral Flux Mitral LA/AO Mitral CA/CE
Mitral EF.Slope Stivs Cardiac B.E.Time
Input B.E.Time
Others
Hard disk: 32GB SSD
Output ports: USB Port:1
LAN Port:1
HDMI Output:1
Probe Interface:1
Power supply 100-240V(AC)~50Hz/60Hz
Lithium battery Continuous operation for 2 hours
Dimensions 285mm(L)*280mm(W)*35mm(H)
Net Weight 3.2Kg
Carton dimensions 380mm(L)*380mm(W)*210mm(H)
Gross weight 6.7Kg
Transducers
3C60H Convex transducer 2-5MHz
2C20H Micro-Convex transducer 2-4MHz
3C15H Micro-Convex transducer 4-9MHz
3C10H Micro-Convex transducer 5-8MHz
3EC10H Transvaginal transducer 5-10MHz
3L40H Linear transducer 5-12MHz
3L25H Linear transducer 6-15MHz
3L65HV Animal rectal transducer 4-8MHz
Other Configurations
Mobile Trolley
Video Printer
Ink-Jet Printer
Laser Printer
HDML Video Converter
Monitor
Hand-carry bag
