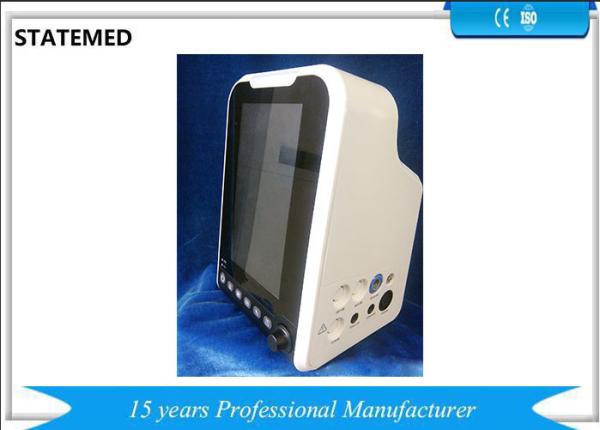

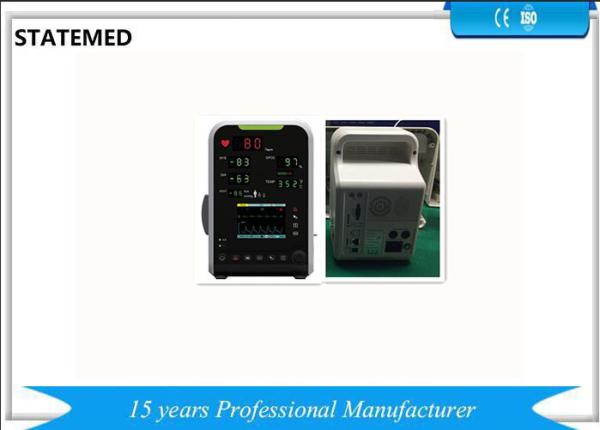

Portable Cardiac Monitoring Equipment , Digital Vital Signs Monitor For Adult Children Infant
Portable Cardiac Monitoring Equipment , Digital Vital Signs Monitor For Adult Children Infant
Portable Cardiac Monitoring Equipment , Digital Vital Signs Monitor For Adult Children Infant
Portable Cardiac Monitoring Equipment , Digital Vital Signs Monitor For Adult Children Infant
Specifications
Brand Name :
STATEMED
Model Number :
STT15-MPM43
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Certificate :
CE
Operation mode :
Continuous operation
Power supply :
AC 110V～230V±10% 50Hz/60Hz±2%
Standard five leads connection :
Red：R Yellow：L Green：F Black：N White：C
Tall T -wave suppression :
1.4mV
Alarm silent :
Provide silent and restart setup
Description

Multi Parameter Patient Monitor for Adult Children Infant CE Approved

General parameters

Application occasion Widely used in hospital outpatient department, ward (such as high dependency ward , coronary care unit, neonatal intensive care unit, operating room and general wards of each departments) and ambulance ect.
Suitable people Adult, children, infant (BP parameters only apply to adult.)
Security classification Class I, with inner power device.
Applied parts BF type CF TYPE
Operation mode Continuous operation
Product structure portable type
Power supply AC 110V～230V±10% 50Hz/60Hz±2%
Network interface extendable

CO2 (Option)

collection method side-streaming
collection gas flow rate and range 50mL/min±10%
CO2 measure range 0～10%(@BTPS)
CO2 test precision

error less than +/- 2mmHg,when

CO2 concentration less than 5.0%(@BTPS)(under standard

Atmosphere 1%=7.6mmHg)

measurement error is not more than 5.0%,

When CO2 concentration more than 5.0%.
alarm range

not less than up and down

Limit:0-10%(@BTPS)
alarm resolution ratio 1mmHg
resolution ratio 0.1mmHg(0 - 69mmHg),0.25mmHg(70-150mmHg)
initialization time CO2 waveform is displayed in 10s,all the parameters will display within 6 minutes under 23 ℃
compensation this monitor automatic give pressure compensation
system total response time less than 4s
Measurement drifting of accuracy ≤2mmHg less than 2mmHg

Alarm

alarm level high, medium , low
alarm type technical alarm, physiology alarm
alarm method audio, indicator, prompt message, parameter flicker
alarm delay ≤0.5s less than 0.5s
sound pressure 45～85dB

Recorder

method thermosensitive dot matrix
record method thermosensitive paper
recorder paper width 57mm
paper specification diameter 40mm/roll
record content waveform, words
record tracking 2 channel
speed 25mm/s

Portable Cardiac Monitoring Equipment , Digital Vital Signs Monitor For Adult Children Infant
