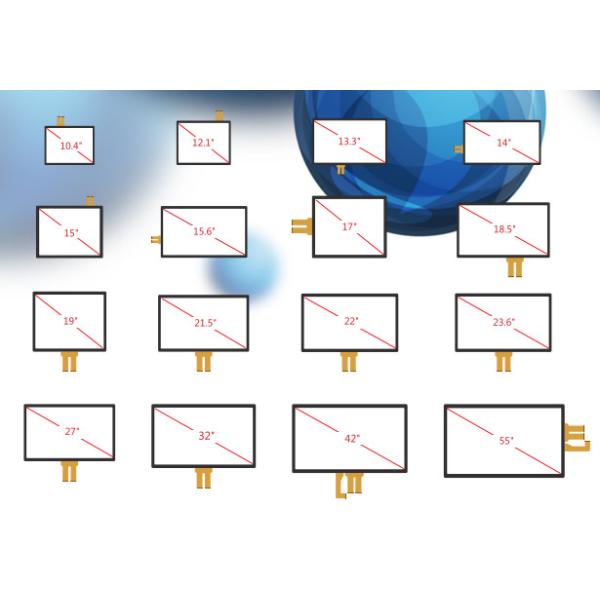

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
Specifications
Brand Name :
Dopo touch
Model Number :
GG-185010 GG-185020
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T,westen union
Supply Ability :
12Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Description
PCT/P-CAP 18.5 Inch Projected Tft Capacitive Touch Screen , 10 Point Multi Touch Panel
Quick Detail:
  • Size: 18.5"
  • Resolution: 25ppi(min)
  • Input method: Finger
  • Material: Glass
  • Touch action force: 30~60g
  • Operating Voltage: 5V

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission

Advantage
  • Multi-points touching
  • Superior image clarity with high light transmission
  • Controller IC close to sensor for best performance
  • Sensitive and fast response
  • Highest resolution
  • More application in electronic fields
Projected Capacitive TouchScreen Technology

Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass. DOPO's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second. Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT touch screen the same touchness as tempered glass which could stand against shock and impact.

Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch touch screen).

Specification
№ Item Specification
projected capacitive touch panel with controller (interface:USB)
1 Item NO. GG-185010 GG-185020
2 Detection method Projected Capacitive
3 Size 18.5"
4 working area (customized)
5 Outline dimension
6 Resolution 25ppi(min)
7 Input method Finger
8 Touch action force 30~60g
9 Operating Voltage 5V adjustable
10 Operating current 2.5~10mA Depends on IC
11 Operating temperature -10°C~60°C
12 Storage temperature -15°C~65°C ,＜90%RH；40°C~70°C,＜60%RH
13 Humidity 10%~90%RH at 40°C, non-condensing
14 Relative humidity 10%~90%RH at 40°C, non-condensing
15 Response time <35ms
16 Transparency ≥82% depends on the quantity of layers
17 Surface hardness ≥6H
18 Material structure Glass to Glass
19 Thickness See drawing
20 Light transmission 92%~100%
21 Durability Scratch-free; More than 50,000,000 touches in one location without failure
22 Drivers available Windows 2000,Windows XP,Windows NT,Linux,Mac
23 Certificates CE, FCC, RoHS
24 Working environment Under sunlight,indoor and outdoor
25 Finger Touch life ≥35,000,000 times
26 Warranty 1 year
Application
  • ATM
  • Car navigation (GPS)
  • E-book
  • KIOSK
  • game device
  • Information service station
  • Electronic photo frame

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission

18.5 Inch Projected Capacitive Touch Screen with 10 Point Multi Touch and High Light Transmission
