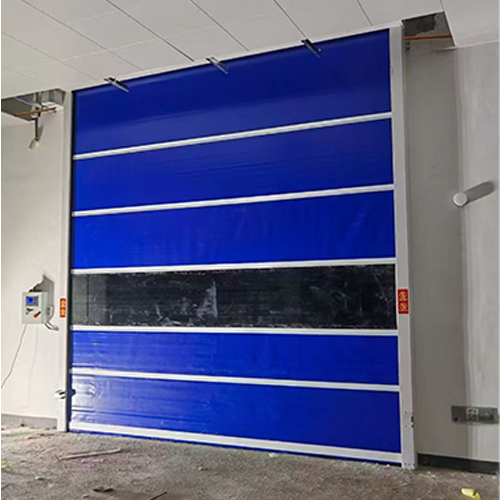

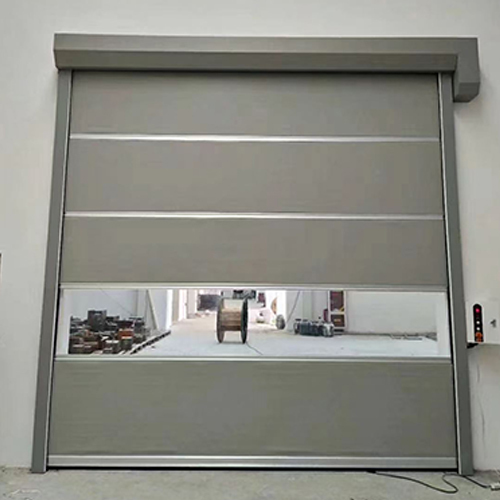

PVC Curtain Industrial High Speed Door Easy Clean For Food Processing Facilities
PVC Curtain Industrial High Speed Door Easy Clean For Food Processing Facilities
PVC Curtain Industrial High Speed Door Easy Clean For Food Processing Facilities
PVC Curtain Industrial High Speed Door Easy Clean For Food Processing Facilities
Specifications
Brand Name :
YOHO
Model Number :
High-Speed PVC Industrial Door
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Name :
Industrial High Speed Door
Color :
Yellow/Blue/Red/Grey/White/Transparent
Voitage :
380V or 220V
Panel Material :
Anti-skid Checkered Plate
Material :
PVC curtain / Galvanized steel / Stainless steel
Power :
0.75-1.5KW
Size :
3x3 m or customized (max size:6x8m)
Door Width :
1000 mm - 6000 mm
Door Height :
1500 mm - 6000 mm
Application :
Food Processing Facilities
Description

Industrial High Speed Door With High-Speed Operation For Food Processing Facilities

Our Industrial High Speed Door is specifically designed for modern food processing facilities, where hygiene, temperature control, and fast internal logistics are critical. With a smooth, non-porous curtain and high-sealing structure, it effectively prevents dust, insects, and air contamination while optimizing workflow efficiency. Its rapid opening and closing speed ensures minimal air exchange, maintaining consistent temperature and humidity for food safety.

Product Specifications

Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Key Features

  • High-Speed Operation: Reduces air exchange and maintains a stable environment.
  • Hygienic Design: Easy-to-clean, non-porous curtain prevents bacteria and dust accumulation.
  • Energy Efficiency: Minimizes temperature fluctuations, lowering refrigeration and HVAC costs.
  • Durable Materials: Resistant to wear, corrosion, and frequent operation.
  • Safety Mechanisms: Equipped with sensors to prevent accidents and protect staff and equipment.

Unique Advantages in Food Processing Facilities

  • Maintains Food Safety Standards: Effectively blocks contaminants, supporting HACCP and GMP compliance.
  • Optimizes Workflow Efficiency: Rapid opening and closing reduces waiting time for forklifts, carts, and personnel.
  • Temperature & Humidity Control: Minimizes environmental fluctuations for sensitive products.
  • Customizable Options: Tailored for various opening sizes, with optional transparent windows for visibility.

Core functions

  • Meets cleanliness level requirements
  • Prevents cross-contamination, insect infestation, and dust accumulation
  • Optional stainless steel structure and easy-to-clean materials

FAQ

What is the recommended maintenance for the Industrial High Speed Door?
Regularly inspect the motor, sensors, and door curtain, and clean the curtain surface to prevent dust and residue buildup.

Can the door be integrated with existing automation systems?
Yes, it can be integrated with factory automation systems, access control, and safety sensors.

What are the available sizes and materials?
Doors come in standard and customized dimensions, with durable PVC, reinforced fabric, or steel curtain options.

How does it improve energy efficiency?
Fast opening/closing and tight sealing reduce air exchange, maintaining temperature and humidity, which lowers refrigeration and HVAC energy use.
