Insulated PVC High Speed Door Cold Storage 1-Year Warranty For Freezer Storage

The High Speed Cold Room Door is a professional Cold Storage High Speed Door specifically engineered for freezer rooms and low-temperature cold storage environments. Designed to operate reliably under freezing conditions, this Freezer High Speed Door combines advanced servo control, superior thermal insulation, and a dual-side track heating system to ensure stable performance, fast operation, and minimal cold air loss. With high-speed opening and closing, excellent sealing performance, and enhanced safety protection, the door plays a critical role in maintaining temperature stability, improving cold chain efficiency, and reducing energy consumption in modern cold storage facilities.

Product Specifications

Control System (Servo System)

1. Equipped with a dedicated servo control system with a DSP chip at its core. The system determines the door opening height by combining incremental encoder signals from the motor shaft with mechanical home-position switch signals.

2. LED display for real-time fault code indication and diagnostics.

3. Direction protection: If the motor drive wiring is connected incorrectly, the controller immediately reports an error and prevents door operation.

4. Full closed-loop control: Torque loop, position loop, and speed loop for high-precision operation.

5. Vector braking function: The motor can stop precisely at the preset position without the need for an electromagnetic brake, ensuring accurate stopping at limit positions with no deviation.

Drive Motor

1. The drive system adopts a servo motor system, including encoder, braking system, gearbox, and emergency manual opening mechanism.

2. Constant torque output of the servo motor ensures optimal performance of safety devices (such as infrared sensors) with fast rebound response.

Safety Features

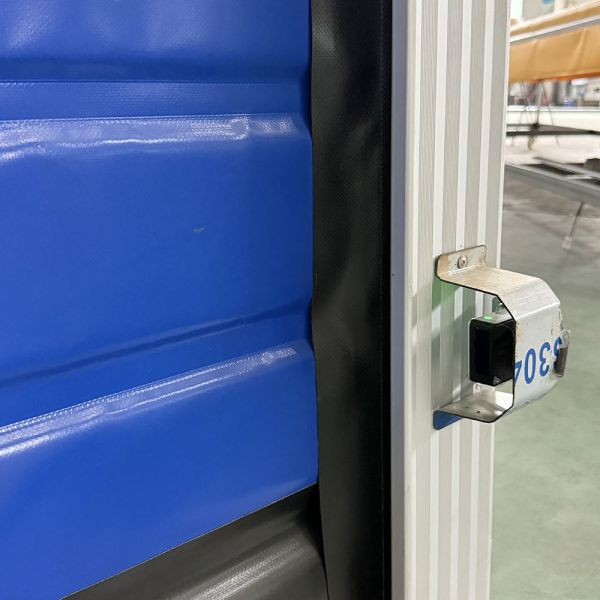

1. Infrared Safety Protection:
Photoelectric sensors are installed on both sides of the door frame. When an object is detected under the door, the door remains open. If an object passes underneath during closing, the door opens to the fully open position and descends again after a delay once the area is clear.

2. Bottom Safety Edge:
If an object is located in the infrared blind zone during closing, the door immediately rebounds to the fully open position upon contact, effectively protecting people and objects and preventing accidents. (Standard configuration)

Key Features of the High Speed Cold Storage Door

Advanced Servo Control System

• Dedicated servo system with DSP chip core for precise and stable operation
• Full closed-loop control (torque, position, and speed loops) ensures smooth movement
• LED display provides real-time fault codes and easy diagnostics
• Vector braking function allows precise stopping without electromagnetic brakes

Excellent Thermal Insulation Structure

• 3+2 composite insulated curtain structure with aluminum foil insulation core
• Total curtain thickness of 18–22 mm, effectively reducing heat transfer
• Designed as a Thermal Insulated High Speed Door for freezer environments

Dual-Side Track Heating System

• Heating wires installed inside both side tracks
• Prevents freezing and ensures smooth curtain movement in low temperatures
• Ideal for Low Temperature High Speed Door applications

High-Speed & Stable Operation

• Opening speed: 0.6–1.2 m/s (adjustable)
• Closing speed: 0.6 m/s (adjustable)
• Minimizes cold air loss during frequent access

Advantages in Freezer Room Applications

Maintain Stable Freezer Temperatures

• Fast operation significantly reduces cold air leakage
• Supports strict temperature control in freezer rooms

Reduce Energy Consumption

• Acts as an Energy Saving Cold Room Door by limiting air exchange
• Helps lower refrigeration system load and operating costs

Reliable Performance in Harsh Environments

• IP54-rated control box ensures dustproof and waterproof protection
• Heating system prevents ice buildup in tracks

Enhanced Operational Safety

• Infrared safety sensors and bottom safety edge protect personnel and goods
• Fast rebound response minimizes accident risks

Typical Applications of the Cold Room Fast Door

Freezer Storage Areas

• Frozen food storage rooms
• Deep freezer warehouses

Cold Chain Logistics

• Cold chain distribution centers
• Temperature-controlled logistics hubs

Food & Cold Storage Facilities

• Cold Storage Door for Food Factory
• High Speed Door for Cold Storage and Freezer Room environments

This door is widely used as a Cold Room Fast Door and Cold Storage Rapid Door in cold chain systems.

FAQ – High Speed Door for Freezer Room

Can this door operate reliably in freezing temperatures?

Yes. The dual-side track heating system ensures smooth operation even in low-temperature freezer environments.

How does the door help reduce energy loss?

High-speed operation and insulated curtain structure minimize cold air leakage, making it an energy-saving solution.

Is this door suitable for high-frequency use?

Yes. The servo motor system is designed for high-cycle operation in cold storage logistics.

Can the door be integrated with other cold room systems?

Yes. Reserved interfaces support infrared sensors, radar, loop detectors, and dual-door interlock systems.
