0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses
0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses
0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses
0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses
Specifications
Brand Name :
YOHO
Model Number :
Hydraulic Dock Leveler
Certification :
ISO 9001/CE
Place of Origin :
China
MOQ :
IUNIT
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 unit per month
Delivery Time :
10~15DAYS
Packaging Details :
plywood package
Product Name :
Fixed Dock Leveler
Color :
Black or Blue or Grey
Voitage :
380V
Panel Material :
Anti-skid Checkered Plate
Lifting speed :
0.05-0.09m/s
Working Temperature :
-35℃~+50℃
Size :
2000*2000*600 or 2000*2500*600
Colors :
blue ,grey ,costomized
Application :
Smart Warehouses
Description

0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses

Product Introduction

As warehouses move toward automation, efficient dock equipment becomes essential. The loading dock leveler plays a key role in improving speed and reducing manual work.

This automatic dock leveler integrates a powered dock leveler system with intelligent controls, making it ideal for modern logistics centers. It can also function as a vertical dock leveler for specialized applications.

Key Features

Automatic Dock Leveler Control

  • Smart operation system
    Simplifies daily use.
  • Reduced manual work
    Improves efficiency.

Powered Dock Leveler System

  • Electric hydraulic control
    Ensures smooth lifting.
  • High reliability
    Suitable for continuous operation.

Vertical Dock Leveler Option

  • Space-saving design
    Keeps dock area clean.
  • Flexible installation
    Suitable for different layouts.

Mechanical Backup System

  • Manual operation option
    Ensures operation during power failure.

Product Specifications

Rated bearing capacity of the platform 6.0t (dynamic) 8.0t (static)
Working temperature -35℃~+50℃
Driving voltage 380V,3phase,50HZ
Main panel material 8mm thick embossed anti slip plate
Main panel support C-type bending parts
Building board material 14mm thick embossed anti slip steel plate
Bottom frame #8channel steel and angle steel
Safety barriers on both sides 3mm steel plate and 1.2mm hot-dip galvanized steel plate
Electric hydraulic system Includes main lift cylinder
Safety system
  1. after an unexpected power outage,only the manual operation platform will restart
  2. circuit locking safety emergency stop device,which can stop the platform at any position through the emergency stop button on the control box)
  3. Yellow/black warning strips are affixed on both sides of the safety barrier
Collision avoidance system Anti collision rubber block :two pieces,welded to the front end of the platform

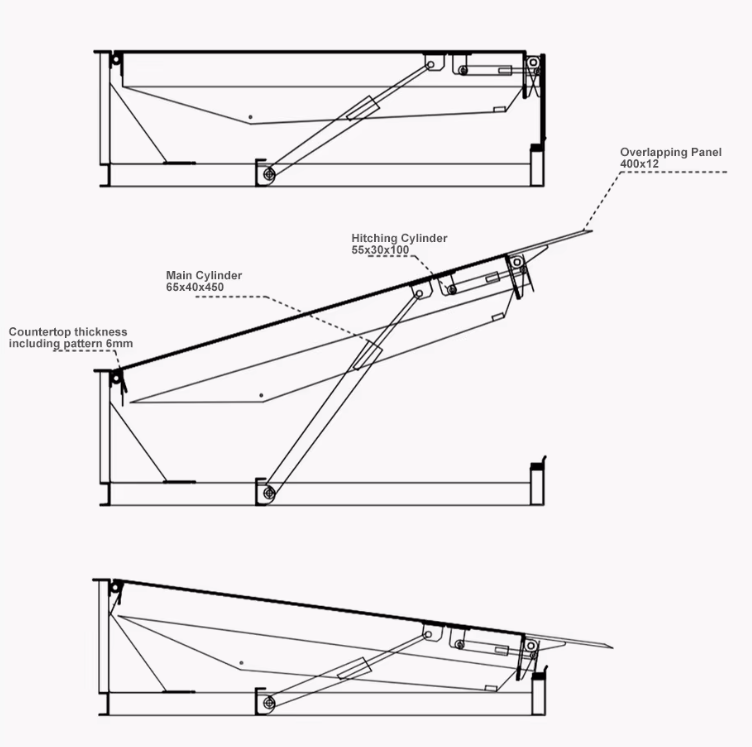

Structural Diagram

0.05-0.09m/s Lifting Speed Automatic Loading Dock Leveler For Smart Warehouses

Technical Specifications

Power Supply

  • 380V industrial voltage

Performance

  • Stable lifting speed

Material

  • Anti-skid steel plate

Types

  • Hydraulic Dock Leveler
  • Mechanical Dock Leveler
  • Truck Dock Leveler
  • Vertical Storing Dock Leveler

Advantages

Improve Efficiency

  • Faster operation
    Reduces loading time.

Reduce Labor Cost

  • Automation system
    Minimizes manual work.

Enhance Safety

  • Controlled movement
    Reduces operational risks.

Applications

  • Smart Warehouses
  • E-commerce Logistics
  • Automated Distribution Centers

Why Choose

Advanced Technology

Ensures modern functionality.

Stable Quality

Provides reliable performance.

Custom Integration

Fits automation systems.

FAQ

What is automatic dock leveler?

A powered system for automated loading.

Is it reliable?

Yes, designed for industrial use.
