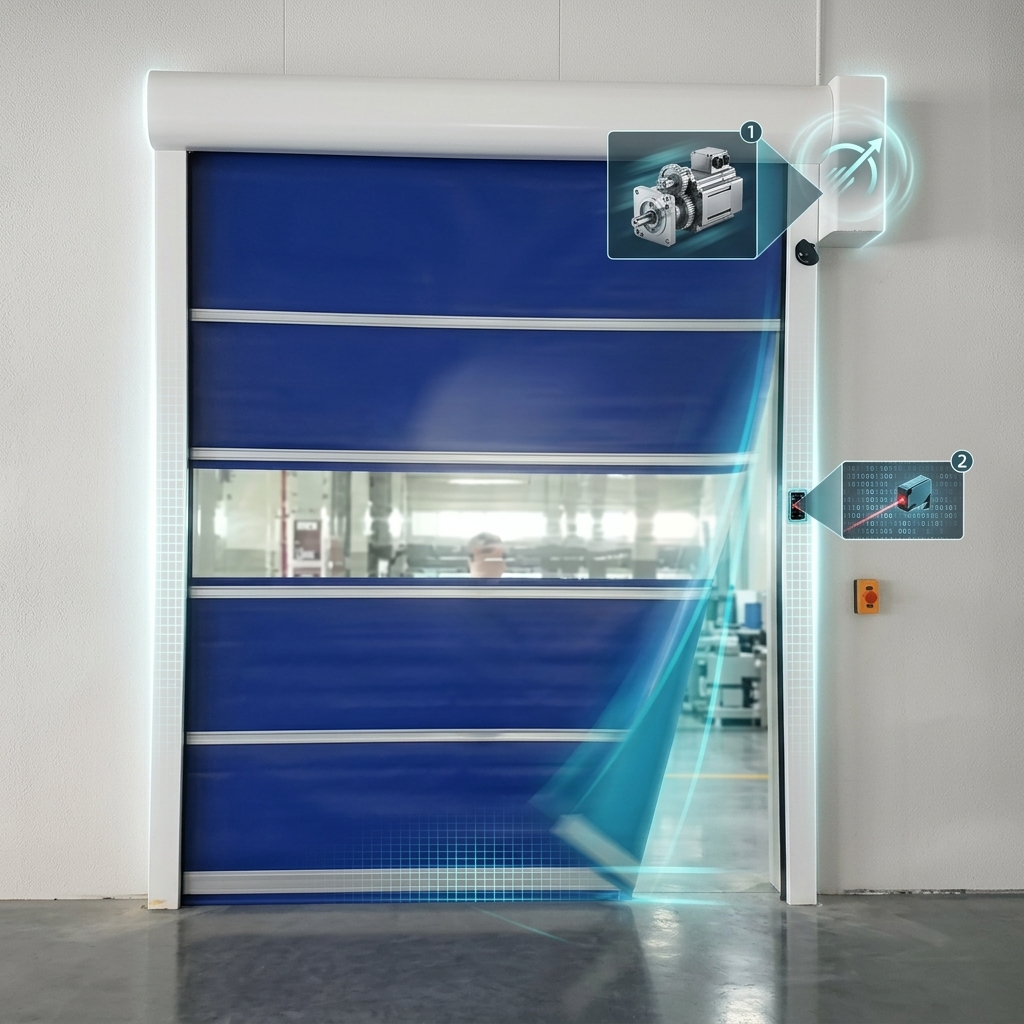

Self-Healing PVC Industrial High Speed Roll Up Door

Introducing our self-healing PVC industrial high speed roll up door, engineered for forklift-heavy warehouse logistics operations where accidental impacts are inevitable. The curtain automatically restores itself after collision, eliminating costly downtime and manual re-adjustment while keeping goods flow uninterrupted.

Key Features

• Self-Healing Curtain Technology: After an impact, the bottom rail auto-reverses and the curtain re-tracks itself within seconds, so the door returns to full operation without manual intervention.
• Impact Recovery Design: The curtain releases from the side guides upon collision and automatically resets, protecting the door body, motor and frame from damage.
• High-Speed Operation: Opening speed up to 2.0 m/s and closing speed 0.6-0.8 m/s, supporting 1000-1500 high-frequency openings per day for busy logistics corridors.
• Reinforced PVC Curtain: 0.8-1.2 mm industrial polyester fiber base fabric with double-sided PVC coating, tear resistance 900N/800N (warp/weft) and tensile strength 5700/5100N/5CM.
• Complete Safety Package: Infrared security system, wireless safety bottom edge and track safety protection prevent accidental injury to personnel and forklifts.
• Energy-Efficient Sealing: Tight curtain-to-frame sealing reduces air exchange, keeping temperature and dust under control in conditioned warehouses.

Technical Specifications

Applications

Ideal for warehouse logistics centers, distribution hubs, loading docks, cold chain facilities and production plants where forklift traffic is continuous and impact damage is a top concern.

Contact Us

Email: yohao260105@gmail.com
WhatsApp: +8618021983369
OEM service: customized size welcome, experienced factory for OEM & ODM service.
