2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
2.0m/s Beaufort-10 Wind-Resistant Aluminum Spiral High Speed Door Outdoor Dock Access System
Specifications
Opening Speed :
2.0 m/s (adjustable)
Motor Power :
1.5 KW servo motor
Certification :
ISO 9001/CE
Delivery Time :
10-15 Days
Place of Origin :
China
Panel Structure :
Aluminum alloy, 40 mm, PU foam filled
Wind Resistance :
Beaufort scale 10
Model Number :
YOHO-SHD-WR10
Payment Terms :
T/T, L/C, Western Union
Packaging Details :
Plywood case with foam protection
MOQ :
1 Unit
Price :
Negotiable
Supply Ability :
300 Units per Month
Control System :
PLC with variable frequency drive
Application :
Outdoor loading docks, coastal warehouses, factory entrances
Closing Speed :
0.6 m/s (adjustable)
Safety Device :
Bottom safety edge, photocell, emergency stop
Max Size :
Width 1000-7000 mm, Height 1500-5000 mm
Brand Name :
YOHO
Product Name :
Wind-Resistant Spiral High Speed Door
Description

Product Overview

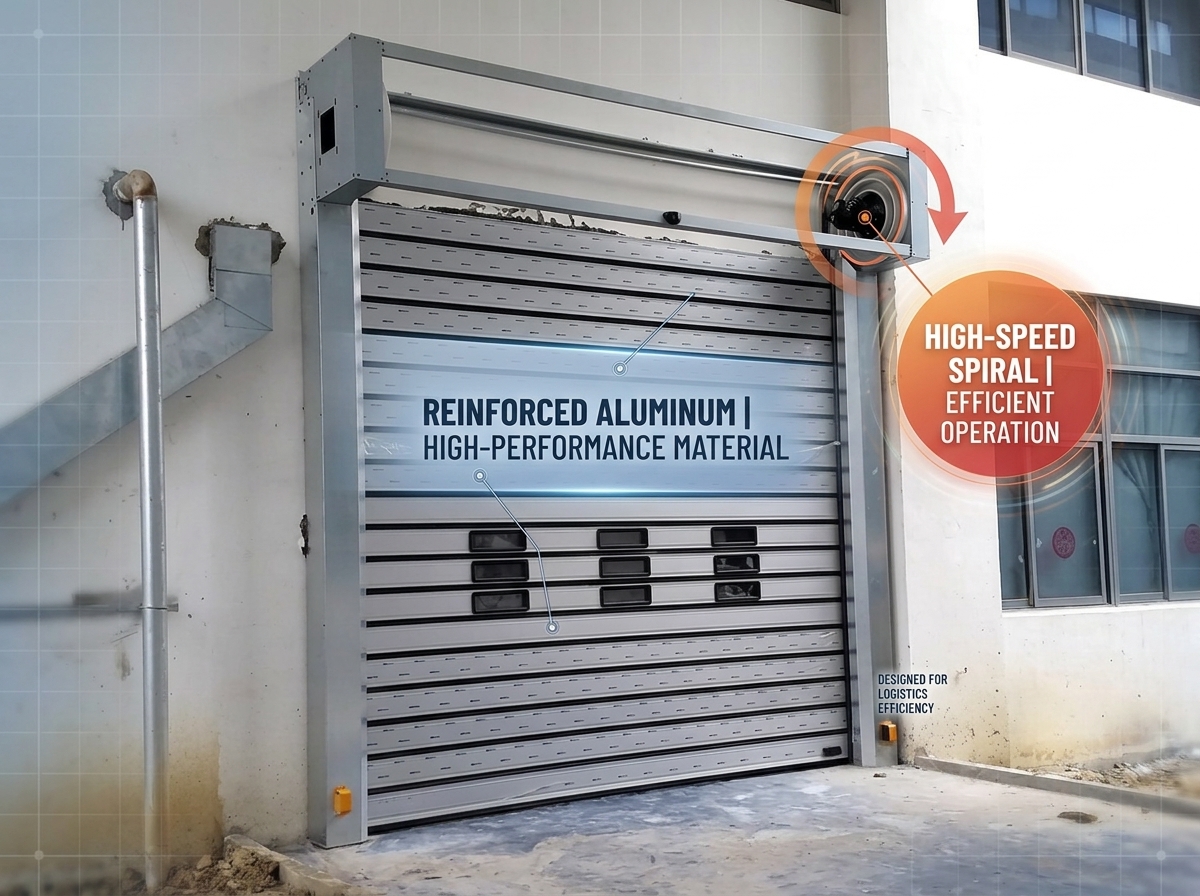

This wind-resistant spiral high speed door is engineered for outdoor openings where high-speed traffic meets strong wind pressure. The aluminum alloy spiral door combines an ultra-fast 2.0m/s opening speed with a rigid insulated panel structure rated up to Beaufort-10 wind load, making it a dependable access solution for loading docks, coastal warehouses and factory exterior entrances.

Built around the three core values of high speed, stable operation and wind resistance, this spiral high speed door keeps logistics flowing while protecting the building interior from wind, dust and temperature loss.

Core Selling Points

High-Speed Opening

  • Opening speed up to 2.0m/s, adjustable to site requirements
  • Rapid response for forklift, truck and AGV traffic
  • Shortens waiting time and raises logistics efficiency

Stable Operation

  • Servo motor with PLC variable frequency drive control
  • Smooth start and stop with low vibration and low noise
  • Consistent performance under high-frequency daily cycles

Wind Resistance

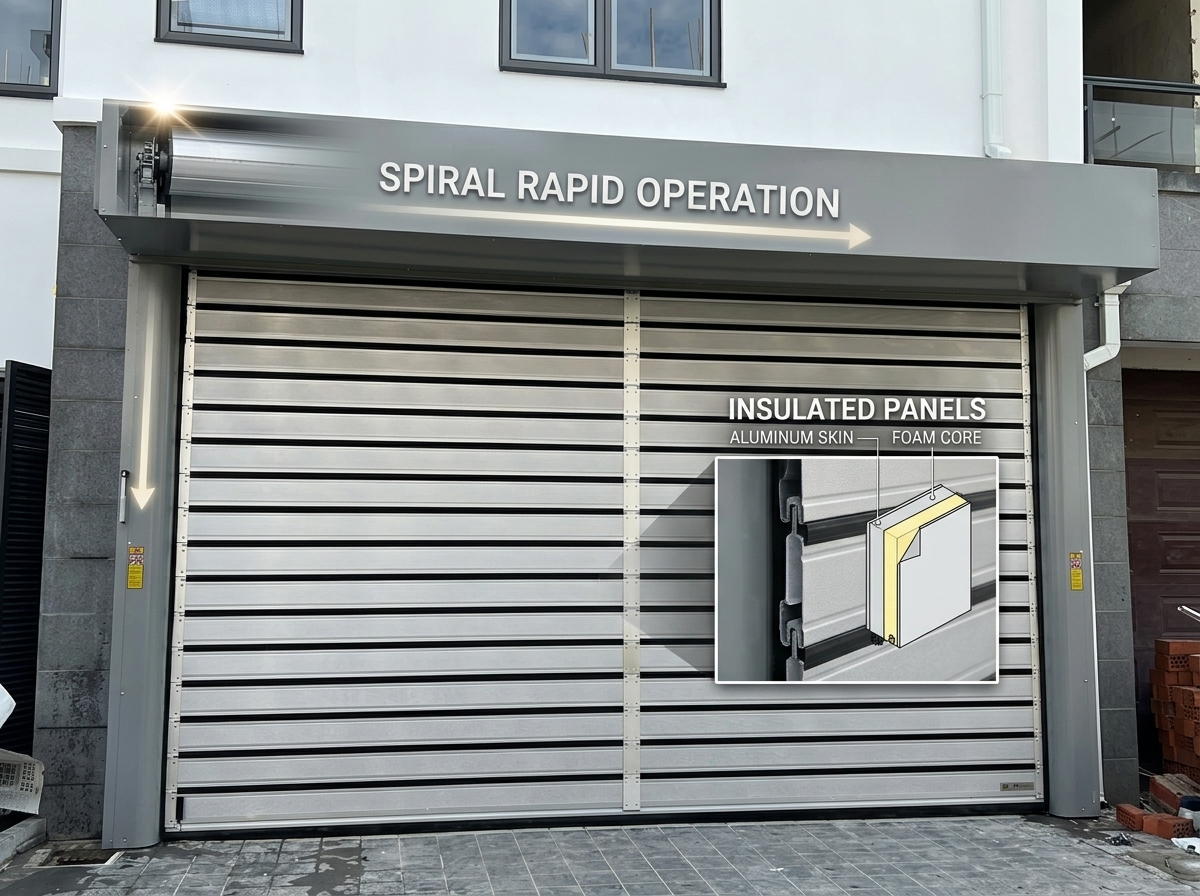

  • Rigid aluminum alloy panels filled with PU foam
  • Wind load resistance up to Beaufort scale 10
  • Multi-layer sealing strips keep out wind, dust and rain

Technical Specifications

ParameterDescription
Maximum SizeWidth 1000-7000 mm, Height 1500-5000 mm
Opening SpeedUp to 2.0 m/s (adjustable)
Closing Speed0.6 m/s (adjustable)
Panel StructureAluminum alloy panels, 40 mm thickness, PU foam filled
Wind ResistanceBeaufort scale 10
Motor Power1.5 KW servo motor
Control SystemPLC control with variable frequency drive
Power Failure FunctionMotor brake release with balance system for manual lifting
Activation OptionsRadar, magnetic loop, pull cord, remote control, push button
Safety ProtectionBottom safety edge, infrared photocell, emergency stop

Applications

  • Outdoor loading docks and dock passages
  • Coastal and port warehouses with strong wind
  • Logistics and distribution centers
  • Factory exterior entrances and vehicle passages
  • Cold storage and food plant external openings

Contact Us

As a professional spiral high speed door manufacturer, we support OEM/ODM service, customized sizes and complete export documentation. Contact us for a factory-direct quote and professional technical advice.
