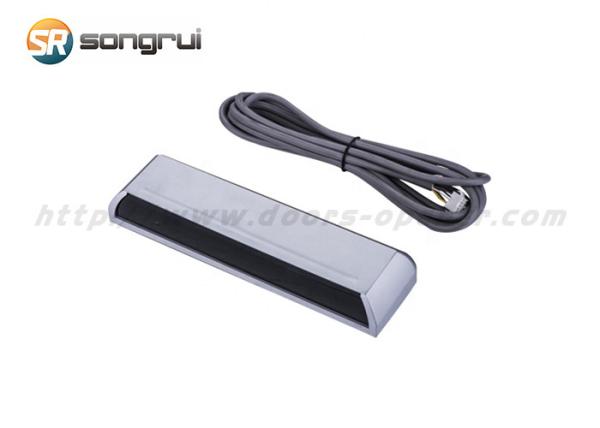

30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor
30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor
30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor
30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor
Specifications
Brand Name :
SONGRUI
Model Number :
YS107
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
5-8 WORK DAYS
Product Name :
Infrared sensor
Type :
YS107
Light beam :
8 channel transmit, 8 channel receive
Power source voltage :
AC/DC 12-30V
Environmen tal temp :
-40℃ ~ +60℃
Shell :
ABS
Mounting height :
Max 2.5m
Description

Anti-Pinch Motion Sensor For Automatic Door Opening Infrared Sensor

Product features:
1. Self-learning function make the installation more easier.
2. Self-recovery function can reduce the mis-detecting from sunshine, lighting, shaking.
3. Safe, beautiful, economic, comfortable.

Specifications:

Anti-pinch Infrared presence sensor for automatic door opening(YS107)

Approval

CE & ISO9001

Power Supply

AC/DC 12 to 30V

Current Draw

160mA Max. (at 12V AC)

Detect Method

Active Infrared Reflection Method

Detection Angle Adjustments

±4° adjustable by 1° every one click(Deep/Shallow)

Detection Width Adjustments

±7° adjustable by 3.5° every one click(Right/Left)

Opration Indicator

Green / Stand-by

Red / Doorside area detect

Orange / Activation Area Detection

Output

"Form C" relay 50V 0.3A Max.(Resistance Load)

Relay Hold Time

0.5 sec.

Response Time

<0.3 sec.

Operating Temperature

-20 ℃ to +55 ℃(-4°F to + 131°F)

Weight

200g(7.1 oz)

Accessories

1 Cable 3m

2 Mounting Screws

1 Operation Manual

1 Mounting Template

1 Area Adjustment Tool

Size

220*64*30mm(L*W*H)

Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor

30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor

30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor30V Automatic Gate Accessories , 2.5m Anti Pinch Motion Sensor
