Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Conveyor Belt Metal Detector for Food Industry
Specifications
Brand Name :
MCD
Model Number :
MCD-F500QF
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
100 set/month
Delivery Time :
Normally within 5 working days
Packaging Details :
Wooden Case
Detection Method :
Electromagnetic Wave Detection
Detection Width :
45-80 cm, Customized
Detection Height :
10-50cm Customized
Sensitivity :
10 level adjustable
Detection Sensitivity :
0.6mm-3.0mm iron ball, 1.5-5.0 Stainless steel
Alarm Mode :
Buzzer alarm and the motor automatically stop
Description

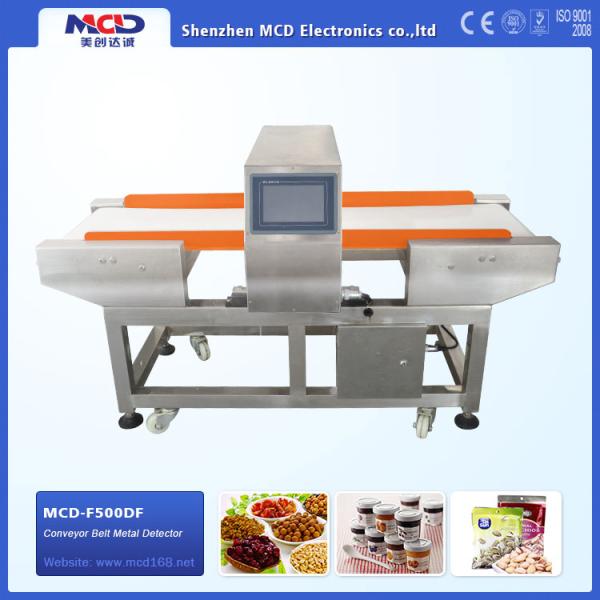

FDA Standard Industrial Conveyor Belt Metal Detector for Food Industry

Description

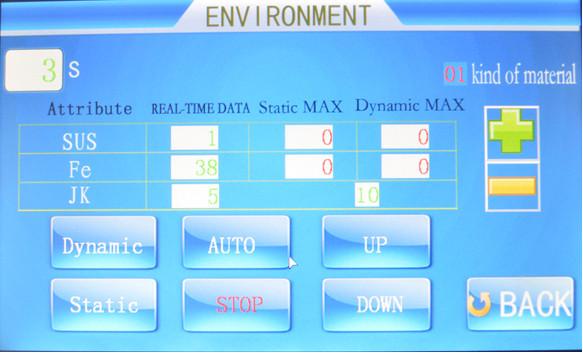

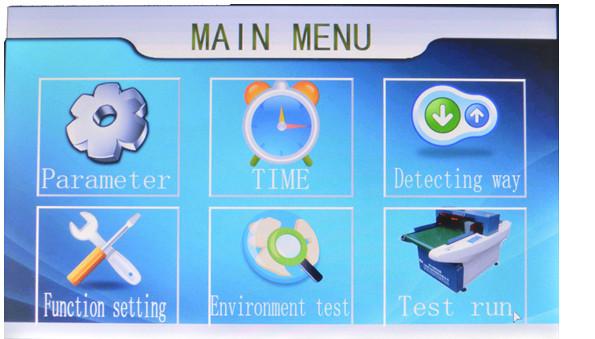

MCD-F500QF is new arrival food metal detector.Not only it has MCD-F500QD and MCD-F500QE all advantages.like touch screen,10 level adjustable sensitivity and memory 10 kinds of products etc.But also it has more higher reliablity and stablity on check products with water and salt.

MCD-F500QF this machine is widely used in the detection of meat, mushrooms, candy, drinks, food, fruits and vegetables,

dairy products, aquatic products, health products, additives and flavorings and other food-ferrous metals and non-ferrous metal impurities

Quick detail

Detection width :

45-80 cm, Customized

Detection height:

10-50cm Customized

Detection sensitivity:

0.6mm-3.0mm iron ball, 1.5-5.0 Stainless steel

Alarm mode:

The buzzer alarm, the motor automatically stop

Transfer speed:

40 meter / mins

Power:

100-265VAC, 50-60Hz

Size:

(150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)

Application

it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.

Product Parameter

Model MCD-F500QF
Aperture Width (mm) 90 120 150 200 250 300 350 400
Aperture Height (mm) 300 300 400 400 500 500 600 600
Detection Sensitivity (mm) Fe ≥0.6 ≥0.7 ≥0.8 ≥1.0 ≥1.5 ≥2.5 ≥3.0 ≥3.5
SUS ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥5.0 ≥6.0 ≥7.0
Belt Width (mm) 280 380 480 580
Table Height (mm) 700
Loading Capacity (kg) 0-100
Power Supply 100-265V AC, 50-60Hz
Notice:
1. Technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt.
2. Sensitivity would be affected according to the products being inspected and working environment.
3. Requirement for different size by customers can be fulfilled.

Conveyor Belt Metal Detector for Food IndustryConveyor Belt Metal Detector for Food IndustryConveyor Belt Metal Detector for Food IndustryConveyor Belt Metal Detector for Food IndustryConveyor Belt Metal Detector for Food IndustryConveyor Belt Metal Detector for Food Industry
