9 uses wood door making machine
9 uses wood door making machine
Specifications
Brand Name :
Shuping
Model Number :
DZA-AS2THR212HB20
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10pcs/40 work days
Delivery Time :
35-40 work days
Packaging Details :
Bubble wrap packaging 4.4m*3m*2.2m
Description

Product Description :

Revolutionize Door Hardware Processing with One Intelligent Machine

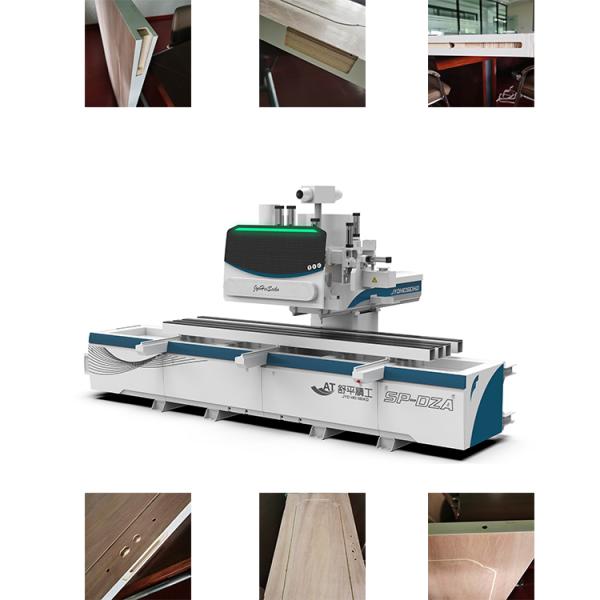

The DZA Multifunction CNC Door Machine redefines efficiency in door manufacturing, integrating sizing, milling, engraving, and hardware processing into a single automated system. Engineered for fast, precise, and elegant results, it processes lock holes in just 60 seconds while eliminating manual errors.

Core Capabilities

1.Comprehensive Processing Range:

Sizing & Profiling | Lock/Hinge Mortising | Roller Grooves|Bolt Slots | Door Closer Mounts | Hanging Holes

Revolutionary Features

  1. Simplified Operation

    • Built-in processing modules with dimension-input automation

    • "Enter Size → Automatic Machining" workflow

  2. Unmatched Speed

    • 60-second lock hole processing cycle

    • 4X faster than traditional methods

  3. Precision Engineering

    • Mitsubishi servo control + THK ball screws (0.1mm accuracy)

    • Anti-tearout design for flawless edges

  4. Space-Saving Design

    • Compact footprint: 4700×2500×2400mm

Technical Specifications

Parameter Value
Working Length 2500 mm
Working Width 300-1000 mm
Working Thickness 18-55 mm
Main Spindle Power 8 KW (Oil-cooled)
Lock Milling Motor 5.6 KW
Horizontal Reverse Milling 0.75 KW
Hinge Milling Motors (x2) 0.75 KW each
Hanging Hole Drilling 0.75 KW

Why Manufacturers Choose DZA

1. Reduce 3 Production Steps into one automated process
2.23% Lower Reject Rate with anti-tearout technology
3.15-Minute Staff Training - no CNC expertise required
4.30% Space Savings vs separate machines

FAQ Section

Q: Can it replace our existing 3 machines?
A: Yes - consolidates sizing, milling, and hardware processing.

Q: Maximum door weight capacity?
A: 80kg with standard clamping system.

Q: Dust collection requirements?
A: Standard 15HP central dust extractor sufficient.

Q: On-site support included?
A: Global technician dispatch within 72 hours.
